| Model Number | FDN304PZ |

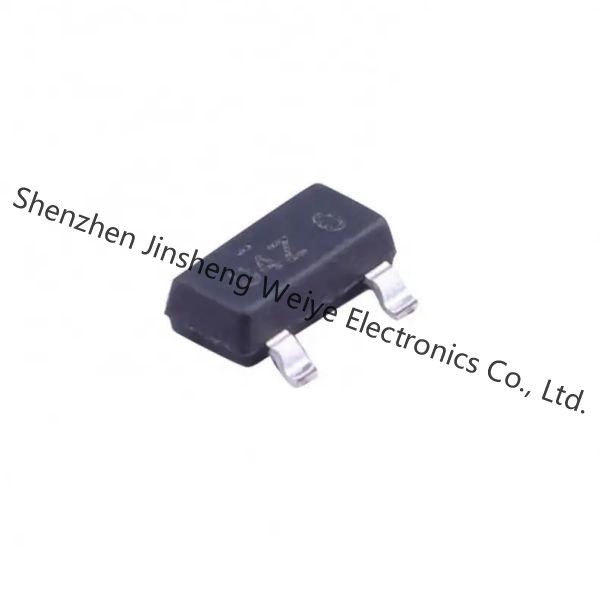

FDN304PZ Datasheet
Product Details
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | FETs - Single |
| Series | PowerTrench® |
| Packaging | Alternate Packaging |
| Part-Aliases | FDN304PZ_NL |
| Unit-Weight | 0.001058 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-236-3, SC-59, SOT-23-3 |
| Technology | Si |
| Operating-Temperature | -55°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Number-of-Channels | 1 Channel |
| Supplier-Device-Package | SuperSOT-3 |
| Configuration | Single |
| FET-Type | MOSFET P-Channel, Metal Oxide |
| Power-Max | 460mW |
| Transistor-Type | 1 P-Channel |
| VDSS – Drain-Source Voltage | 20V |
| Input Capacitance | 1310pF @ 10V |
| FET-Feature | Logic Level Gate, 1.8V Drive |
| Current-Continuous-Drain-Id-25°C | 2.4A (Ta) |
| Rds-On-Max-Id-Vgs | 52 mOhm @ 2.4A, 4.5V |
| Vgs-th-Max-Id | 1.5V @ 250μA |
| Gate-Charge-Qg-Vgs | 20nC @ 4.5V |
| Pd-Power-Dissipation | 500 mW |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Fall-Time | 15 ns |
| Rise-Time | 15 ns |
| Vgs-Gate-Source-Voltage | 8 V |
| ID (drain current) | 2.4 A |
| Vds-Drain-Source-Breakdown-Voltage | - 20 V |
| Rds-On-Drain-Source-Resistance | 52 mOhms |
| Transistor-Polarity | P-Channel |
| Typical-Turn-Off-Delay-Time | 40 ns |
| Turn-On Delay Time | 15 ns |
| Transconductance | 12 S |
| Channel-Mode | Enhancement |
| Manufacturer Part# | Description | Manufacturer | Compare |
| FDN302PD87Z | Small Signal Field-Effect Transistor, 2.4A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SUPERSOT-3 | Fairchild Semiconductor Corporation | FDN304PZ vs FDN302PD87Z |
| Transistors | |||
| FDN302P | P-Channel 2.5V Specified PowerTrenchR MOSFET -20V, -2.4A, 55m惟, 3000-REEL | ON Semiconductor | FDN304PZ vs FDN302P |
| Transistors | |||
| FDN304P_NL | Small Signal Field-Effect Transistor, 2.4A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SUPERSOT-3 | Fairchild Semiconductor Corporation | FDN304PZ vs FDN304P_NL |
| Transistors | |||
| FDN304PZ | P-Channel 1.8V Specified PowerTrenchR MOSFET -20V, -2.4A, 52m惟, 3000-REEL | ON Semiconductor | FDN304PZ vs FDN304PZ |
| Transistors | |||
| FDN304PZ_NL | Small Signal Field-Effect Transistor, 2.4A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SUPERSOT-3 | Fairchild Semiconductor Corporation | FDN304PZ vs FDN304PZ_NL |
| Transistors | |||
| FDN304P | P-Channel 1.8V Specified PowerTrenchR MOSFET -20V, -2.4A, 52m惟, 3000-REEL | ON Semiconductor | FDN304PZ vs FDN304P |
| Transistors | |||
| FDN302PS62Z | Small Signal Field-Effect Transistor, 2.4A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SUPERSOT-3 | Fairchild Semiconductor Corporation | FDN304PZ vs FDN302PS62Z |
| Transistors | |||
| FDN302PL99Z | Small Signal Field-Effect Transistor, 2.4A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SUPERSOT-3 | Fairchild Semiconductor Corporation | FDN304PZ vs FDN302PL99 |
| Transistors |
