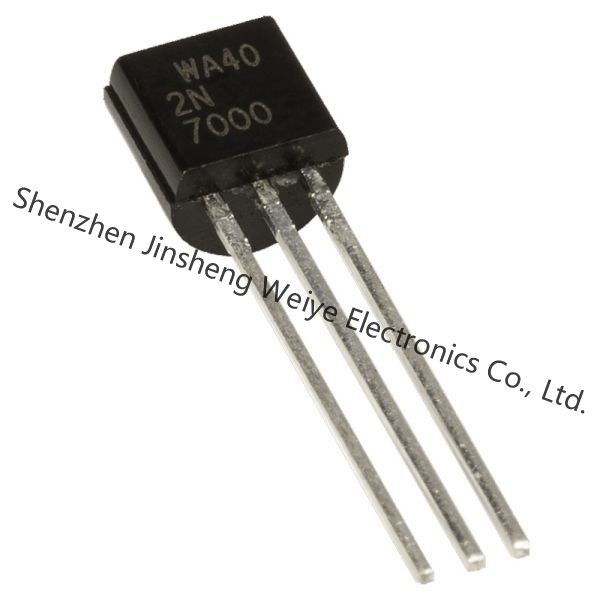

| Model Number | 2N7000_D75Z |
2N7000_D75Z Datasheet
Product Details
These N-channel enhancement mode field effect transistors are produced using Fairchilds proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 400 mA DC and can deliver pulsed currents up to 2 A. These products are particularly suited for low-voltage, low-current applications, such as small servo motor control, power MOSFET gate drivers, and other switching applications.
• High Density Cell Design for Low RDS(ON)
• Voltage Controlled Small Signal Switch
• Rugged and Reliable
• High Saturation Current Capability
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Product Category | FETs - Single |
| Packaging | Ammo Pack |
| Unit-Weight | 0.007090 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-92-3 |
| Technology | Si |
| Number-of-Channels | 1 Channel |
| Configuration | Single |
| Transistor-Type | 1 N-Channel |
| Pd-Power-Dissipation | 400 mW |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Vgs-Gate-Source-Voltage | 20 V |
| ID (drain current) | 200 mA |
| Vds-Drain-Source-Breakdown-Voltage | 60 V |
| Rds-On-Drain-Source-Resistance | 1.2 Ohms |
| Transistor-Polarity | N-Channel |
| Transconductance | 0.1 S |
| Channel-Mode | Enhancement |
