| Place of Origin | Call |
| Brand Name | Infineon |
| Certification | ROHS |
| Model Number | IR2102STRPBF |

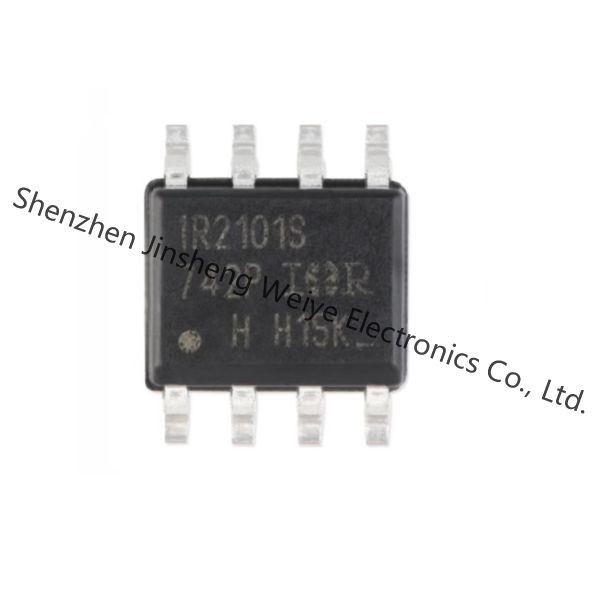

IR2102STRPBF DatasheetThe IR2101(S)/IR2102(S) are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
• Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage
dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout
• 3.3V, 5V, and 15V logic input compatible
• Matched propagation delay for both channels
• Outputs in phase with inputs (IR2101) or out of
phase with inputs (IR2102)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon |
| Product Category | Gate Drivers |
| Series | - |
| Type | Half-Bridge |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | Surface Mount |
| Operating-Temperature | 100ns, 50ns |
| Mounting-Type | -40°C ~ 150°C (TJ) |
| Features | Independent |
| Supplier-Device-Package | 8-SOIC (0.154", 3.90mm Width) |
| Resolution-Bits | 2 |
| Data-Interface | Independent |
| Voltage-Supply-Analog | Inverting |
| Voltage-Supply-Digital | 600V |
| Configuration | Inverting |
| Number-of-ADCs-DACs | |
| Sigma-Delta | 10 V ~ 20 V |
| S-N-Ratio-ADCs-DACs-db-Typ | 0.8V, 3V |
| Dynamic-Range-ADCs-DACs-db-Typ | 210mA, 360mA |
| Number-of-Outputs | 2 Outputs |
| Pd-Power-Dissipation | 625 mW |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 270 uA |
| Output-Current | 360 mA |
| Fall-Time | 90 ns |
| Rise-Time | 170 ns |
| Supply-Voltage-Max | 20 V |
| Supply-Voltage-Min | 10 V |
| Package-Case | SOIC-8 |
| Number-of-Drivers | 2 Driver |
| Maximum-Turn-Off-Delay-Time | 50 ns |
| Turn-On Delay Time | 50 ns |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| IR2102S Drivers And Interfaces |
Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO8, MS-012AA, SOIC-8 | Infineon Technologies AG | IR2102STRPBF vs IR2102S |
| IR2102SPBF Drivers And Interfaces |
Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO8, LEAD FREE, MS-012AA, SOIC-8 | Infineon Technologies AG | IR2102STRPBF vs IR2102SPBF |
