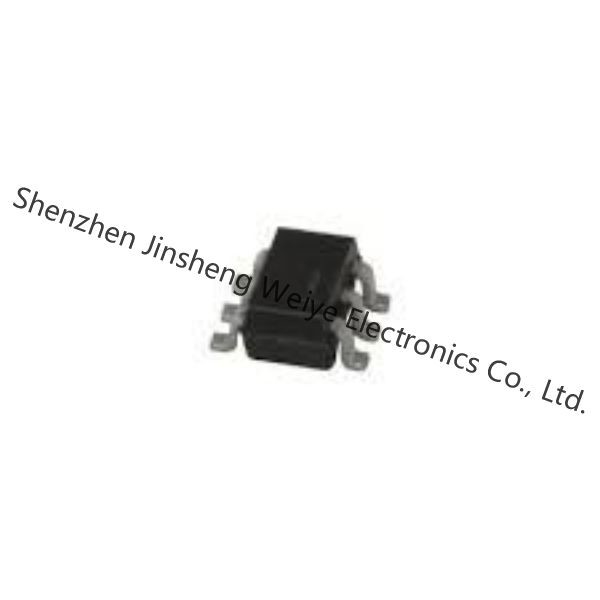

| Model Number | TPC6104(TE85L,F,M) |
TPC6104(TE85L,F,M) Datasheet
Product Details
Portable Equipment Applications
• High forward transfer admittance: |Yfs| = 12 S (typ.)
• Low leakage current: IDSS= −10 µA (max) (VDS= −20 V)
• Enhancement mode: Vth= −0.5 to −1.2 V
(VDS= −10 V, ID= −200 µA)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TOSHIBA |
| Product Category | FETs - Single |
| Categories | Transistors - FETs, MOSFETs - Single |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSIII |
| Packaging | Tape & Reel (TR) |
| Part-Status | Obsolete |
| FET-Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain-to-Source-Voltage-Vdss | 20V |
| Current-Continuous-Drain-Id-25°C | 5.5A (Ta) |
| Drive-Voltage-Max-Rds-On-Min-Rds-On | 1.8V, 4.5V |
| Vgs-th-Max-Id | 1.2V @ 200?A |
| Gate-Charge-Qg-Max-Vgs | 19nC @ 5V |
| Vgs-Max | ±8V |
| Input-Capacitance-Ciss-Max-Vds | 1430pF @ 10V |
| FET-Feature | - |
| Power-Dissipation-Max | 700mW (Ta) |
| Rds-On-Max-Id-Vgs | 40 mOhm @ 2.8A, 4.5V |
| Operating-Temperature | 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | VS-6 (2.9x2.8) |
| Package-Case | SOT-23-6 Thin, TSOT-23-6 |
Descriptions
P-Channel 20V 5.5A (Ta) 700mW (Ta) Surface Mount VS-6 (2.9x2.8)
