| Place of Origin | Call |
| Brand Name | Infineon |
| Certification | ROHS |
| Model Number | IRFR9310TRLPBF |
IRFR9310TRLPBF Datasheet
Product Details
Third generation Power MOSFETs from Vishay utilize advanced processing techniques to achieve low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
• P-Channel
• Surface Mount (IRFR9310/SiHFR9310)
• Straight Lead (IRFU9310/SiHFU9310)
• Advanced Process Technology
• Fast Switching
• Fully Avalanche Rated
• Lead (Pb)-free Available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon |
| Product Category | FETs - Single |
| Packaging | Reel |
| Unit-Weight | 0.050717 oz |
| Mounting-Style | SMD/SMT |

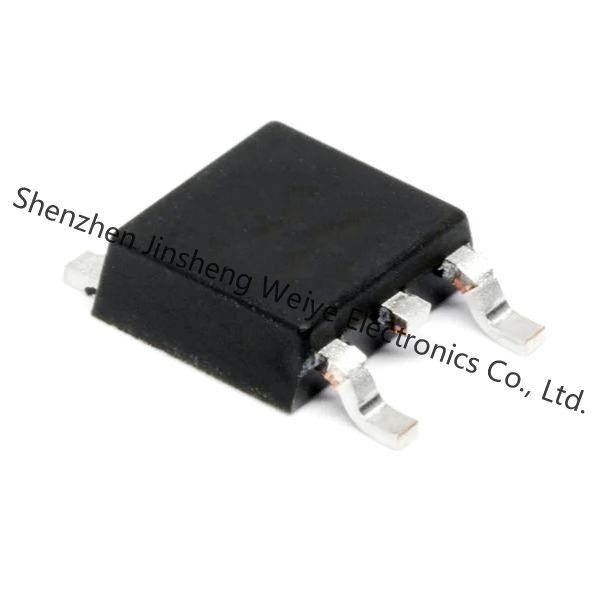

| Package-Case | TO-252-3 |
| Technology | Si |
| Number-of-Channels | 1 Channel |
| Configuration | Single |
| Transistor-Type | 1 P-Channel |
| Pd-Power-Dissipation | 50 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Fall-Time | 24 ns |
| Rise-Time | 10 ns |
| Vgs-Gate-Source-Voltage | 20 V |
| ID (drain current) | 1.8 A |
| Vds-Drain-Source-Breakdown-Voltage | - 400 V |
| Rds-On-Drain-Source-Resistance | 7 Ohms |
| Transistor-Polarity | P-Channel |
| Typical-Turn-Off-Delay-Time | 25 ns |
| Turn-On Delay Time | 11 ns |
|
Channel-Mode |
Enhancement |
Descriptions
