| Place of Origin | Call |
| Brand Name | IXYS |
| Certification | ROHS |
| Model Number | IXFH58N20Q |
IXFH58N20Q Datasheet
Product Details
N-Channel Enhancement Mode Avalanche Rated High dv/dt, Low Qg
• IXYS advanced low Qg process
• International standard packages
• Low gate charge and capacitance
- easier to drive
- faster switching
• Low RDS (on)
• Unclamped Inductive Switching (UIS) rated
• Molding epoxies meet UL 94 V-0 flammability classification
• Easy to mount
• Space savings
• High power density
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | IXYS |
| Product Category | IC Chips |
| Series | IXFH58N20 |
| Packaging | Tube |
| Unit-Weight | 6500 g |
| Mounting-Style | Through Hole |
| Tradename | HyperFET |
| Technology | Si |
| Number-of-Channels | 1 Channel |
| Configuration | Single |

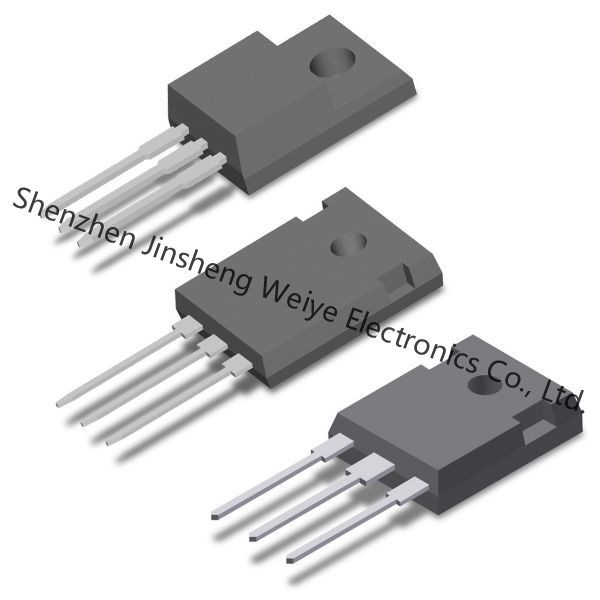

| Package-Case | TO-247-3 |
| Transistor-Type | 1 N-Channel |
| Pd-Power-Dissipation | 300 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Fall-Time | 13 ns |
| Rise-Time | 40 ns |
| Vgs-Gate-Source-Voltage | 20 V |
| ID (drain current) | 58 A |
| Vds-Drain-Source-Breakdown-Voltage | 200 V |
| Rds-On-Drain-Source-Resistance | 40 mOhms |
| Transistor-Polarity | N-Channel |
| Typical-Turn-Off-Delay-Time | 40 ns |
| Turn-On Delay Time | 20 ns |
| Transconductance | 34 S |
| Channel-Mode | Enhancement |
Descriptions
Who we are?
is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
