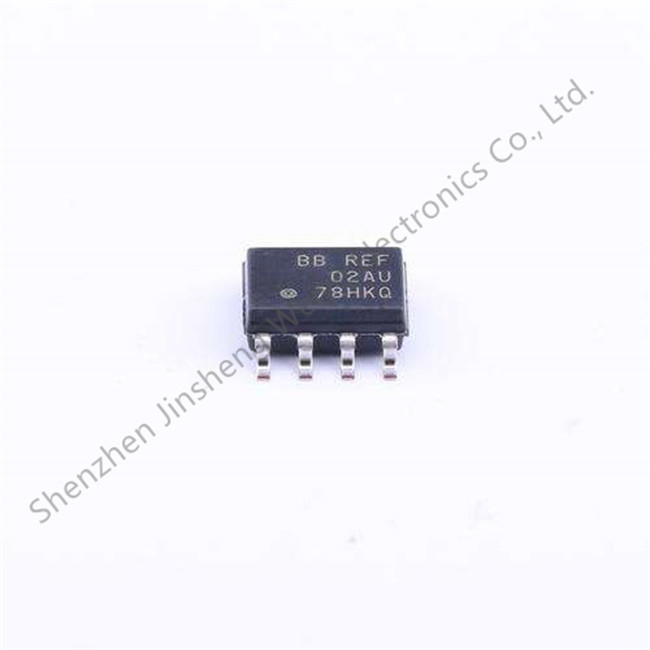

REF02AU SOP8 Reference Voltage IC , 5V Precise Reference Voltage IC



GENERAL DESCRIPTION

The REF02 precision voltage reference providesa stable5 V output that can be adjustedover a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of7 V to40 V,low current drain of1 mA, and excellent temperature stability are achieved with an improved band gap design. Low cost, low noise,and low power make the REF02 anexcellent choice when ever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital volt meters. The versatility ofthe REF02 is enhanced byits use as a monolithic temperature transducer. For new designs, refer to the ADR02.





FEATURES

5 V output: ±0.3% maximum
Temperature voltage output: 1.96 mV/°C
Adjustmentrange: ±3%minimum
Excellent temperature stability: 8.5 ppm/°C maximum
Low noise: 15µV p-p maximum
Low supply current: 1.4 mA maximum
Wide input voltage range: 7 V to 40 V
Highload-drivingcapability: 10 mA
No external components
Short-circuit proof
