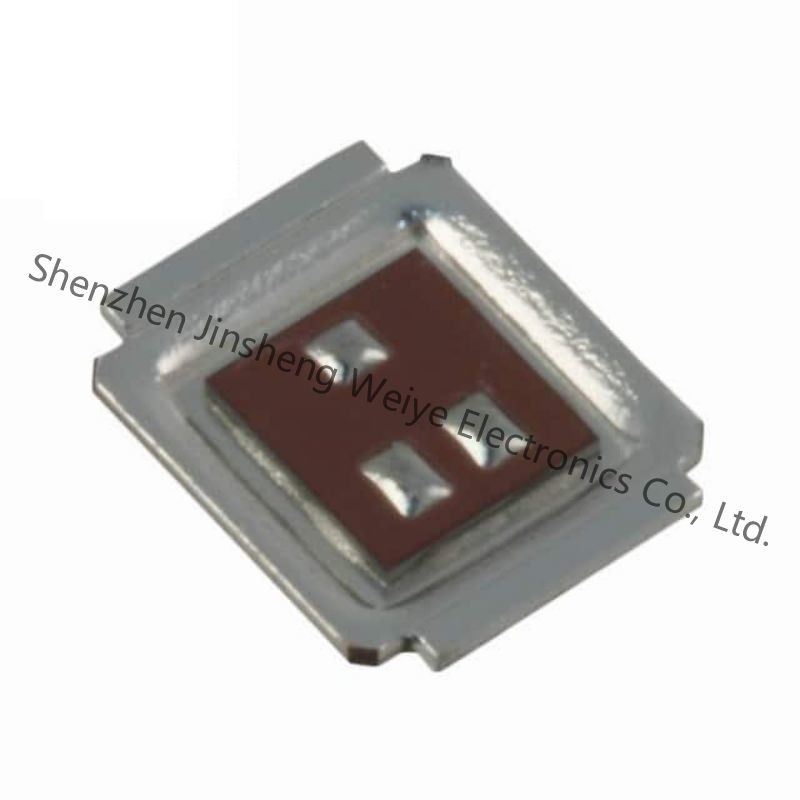

The IRF6604 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance charge product in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and process. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, IMPROVING previous best thermal resistance by 80%.
Attribute | Attribute Value |
---|---|
Manufacturer | International Rectifier |
Product Category | FETs - Single |
Mount | Surface Mount |
Number-of-Pins | 7 |
Continuous-Drain-Current-ID | 12.5 A |
Current-Rating | 12 A |
Drain-to-Source-Breakdown-Voltage | 30 V |
Drain-to-Source-Resistance | 9 mΩ |
Drain-to-Source-Voltage-Vdss | 30 V |
Fall-Time | 25 ns |
Gate-to-Source-Voltage-Vgs | 12 V |
Input-Capacitance | 2.27 nF |
Max-Operating-Temperature | 150 °C |
Max-Power-Dissipation | 2.3 W |
Min-Operating-Temperature | -40 °C |
Packaging | Cut Tape |
Power-Dissipation | 2.3 W |
Rds-On-Max | 11.5 mΩ |
Resistance | 11.5 MΩ |
Rise-Time | 4.3 ns |
Turn-Off-Delay-Time | 18 ns |
Voltage-Rating-DC | 30 V |
Lead-Free | Lead Free |
RoHS | Compliant |
• Ideal for CPU Core DC-DC Converters
• Low Conduction Losses
• Low Switching Losses
• Low Profile (<0.7 mm)
• Dual Sided Cooling Compatible
• Compatible with existing Surface Mount Techniques
