| Model Number | ZXTN617MATA |

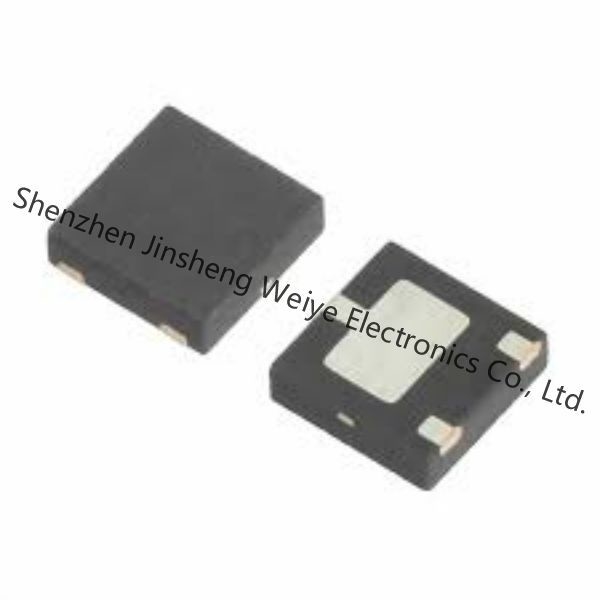

ZXTN617MATA Datasheet
Product Details
• BVCEO > 15V
• IC = 4.5A Continuous Collector Current
• Low Saturation Voltage (100mV max @ 1A)
• RSAT = 45 mΩ for a low equivalent On-Resistance
• hFE specified up to 12A for high current gain hold up
• Low profile 0.6mm high package for thin applications
• RθJA efficient, 60% lower than SOT23
• 4mm2 footprint, 50% smaller than SOT23
• Lead-Free, RoHS Compliant (Note 1)
• Halogen and Antimony Free. "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
• MOSFET Gate Driving
• DC–DC Converters
• Charging Circuits
• Motor Control
• Power switch
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors (BJT) - Single |
| Series | ZXTN617 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 3-UDFN |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | DFN2020B-3 |
| Configuration | Single |
| Power-Max | 3W |
| Transistor-Type | NPN |
| Electric current collectors | 4.5A |
| Voltage-Collector-Emitter-Breakdown-Max | 15V |
| DC-Current-Gain-hFE-Min-Ic-Vce | 200 @ 3A, 2V |
| Vce saturation | 280mV @ 50mA, 4.5A |
| Current-Collector-Cutoff-Max | 25nA |
| Frequency-Transition | 120MHz |
| Pd-Power-Dissipation | 1.5 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Collector-Emitter-Voltage-VCEO-Max | 15 V |
| Transistor-Polarity | NPN |
| Collector-Emitter-Saturation-Voltage | 200 mV |
| Collector-Base-Voltage-VCBO | 40 V |
| Emitter-Base-Voltage-VEBO | 7 V |
| Maximum-DC-Collector-Current | 5 A |
| Gain-Bandwidth-Product-fT | 120 MHz |
| Continuous-Collector-Current | 4.5 A |
