| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |

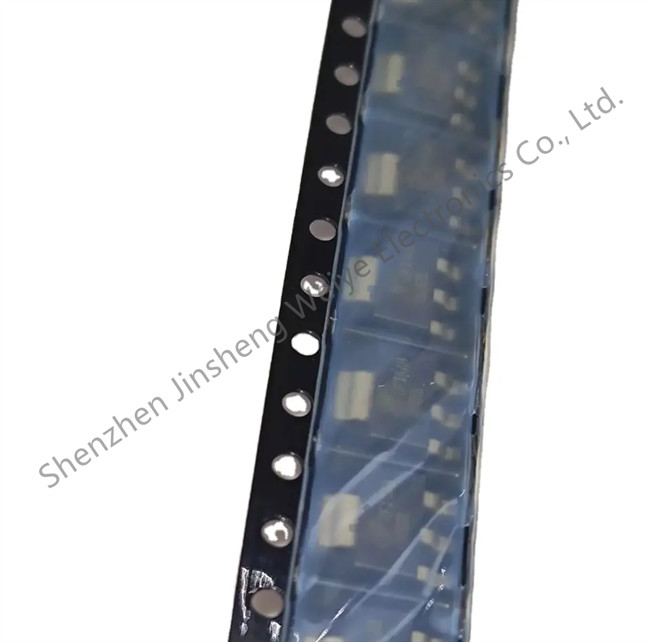

| Model Number | NDT3055L |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | FETs - Single |
| Series | - |
| Packaging | Alternate Packaging |
| Part-Aliases | NDT3055_NL |
| Unit-Weight | 0.006632 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-261-4, TO-261AA |
| Technology | Si |
| Operating-Temperature | -65°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Number-of-Channels | 1 Channel |
| Supplier-Device-Package | SOT-223-4 |
| Configuration | Single |
| FET-Type | MOSFET N-Channel, Metal Oxide |
| Power-Max | 1.1W |
| Transistor-Type | 1 N-Channel |
| VDSS – Drain-Source Voltage | 60V |
| Input Capacitance | 250pF @ 30V |
| FET-Feature | Standard |
| Current-Continuous-Drain-Id-25°C | 4A (Ta) |
| Rds-On-Max-Id-Vgs | 100 mOhm @ 4A, 10V |
| Vgs-th-Max-Id | 4V @ 250μA |
| Gate-Charge-Qg-Vgs | 15nC @ 10V |
| Pd-Power-Dissipation | 3 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 65 C |
| Fall-Time | 30 ns |
| Rise-Time | 18 ns |
| Vgs-Gate-Source-Voltage | 20 V |
| ID (drain current) | 4 A |
| Vds-Drain-Source-Breakdown-Voltage | 60 V |
| Rds-On-Drain-Source-Resistance | 100 mOhms |
| Transistor-Polarity | N-Channel |
| Typical-Turn-Off-Delay-Time | 37 ns |
| Turn-On Delay Time | 10 ns |
| Transconductance | 6 S |
| Channel-Mode | Enhancement |
