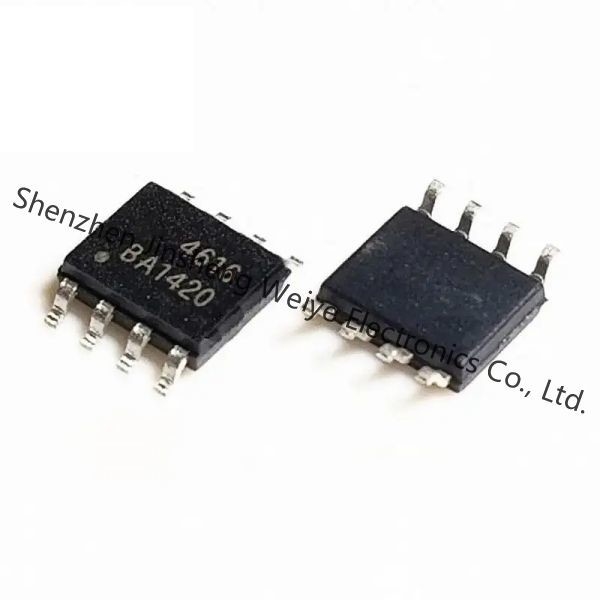

| Model Number | AO4616 |
AO4616 Datasheet
Product Details
The AO4801A uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product AO4801A is Pb-free (meets ROHS & Sony 259 specifications)
VDS (V) = -30V
ID =-5.6A (VGS = 10V)
RDS(ON) < 42mΩ (VGS = 10V)
RDS(ON) < 52mΩ (VGS = 4.5V)
RDS(ON) < 75mΩ (VGS = 2.5V)
Rg,Ciss,Coss,Crss Tested
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Product Category | FETs - Arrays |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -55°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-SOIC |
| FET-Type | N and P-Channel |
| Power-Max | 2W |
| VDSS – Drain-Source Voltage | 30V |
| Input Capacitance | 888pF @ 15V |
| FET-Feature | Logic Level Gate |
| Current-Continuous-Drain-Id-25°C | 8A, 7A |
| Rds-On-Max-Id-Vgs | 20 mOhm @ 8A, 10V |
| Vgs-th-Max-Id | 2.4V @ 250μA |
| Gate-Charge-Qg-Vgs | 18nC @ 10V |
