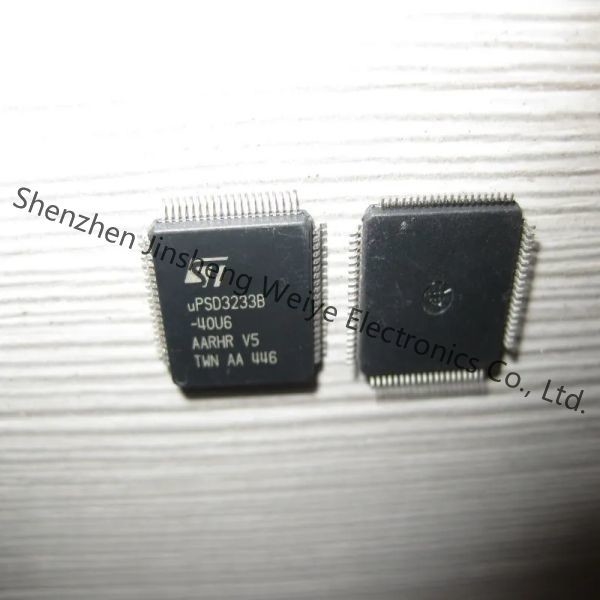

Semiconductor UPSD3233B-40U6 8-bit Microcontrollers - MCU 5.0V 1M 40MHz

                                                   UPSD3233B-40U6 Datasheet

Specification

Form,Package,Functional compatible component

Product Details

FEATURES SUMMARY

■ The µPSD3200 Family combines a Flash PSD
architecture with an 8032 microcontroller core
The µPSD3200 Family of Flash PSDs features
dual banks of Flash memory, SRAM, general
purpose I/O and programmable logic, supervisory
functions and access via USB, I2C, ADC,
DDC and PWM channels, and an on-board
8032 microcontroller core, with two UARTs,
three 16-bit Timer/Counters and one External
Interrupt. As with other Flash PSD families, the
µPSD3200 Family is also in-system programmable (ISP) via a JTAG ISP interface.
■ Large 8 KByte SRAM with battery back-up
option
■ Dual bank Flash memories
– 128 KByte or 256 KByte main Flash memory
– 32 KByte secondary Flash memory
■ Content Security
– Block access to Flash memory
■ Programmable Decode PLD for flexible address
mapping of all memories.
■ High-speed clock standard 8032 core (12-cycle)
■ USB Interface (µPSD3234A-40U6 only)
■ I2C interface for peripheral connections
■ Five Pulse Width Modulator (PWM) channels
■ Standalone Display Data Channel (DDC)
■ Six I/O ports with up to 50 I/O pins
■ 3000 gate PLD with 16 macrocells
■ Supervisor functions
■ In-System Programming (ISP) via JTAG
■ Zero-Power Technology
■ Single Supply Voltage
– 4.5 to 5.5 V
– 3.0 to 3.6 V
