| Place of Origin | Call |
| Brand Name | Cypress Semiconductor |
| Certification | ROHS |

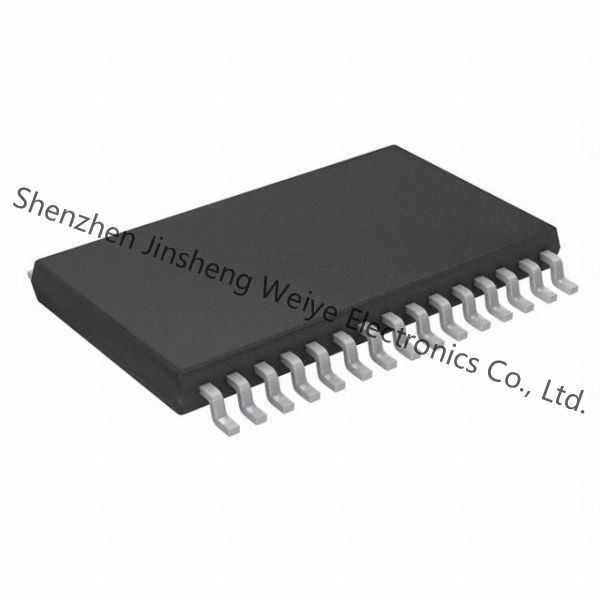

| Model Number | MB89935BPFV-G-308-ERE1 |
MB89935BPFV-G-308-ERE1 Datasheet| Attribute | Attribute Value |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Product Category | IC Chips |
| Series | F2MC-8L MB89930A |
| Product | MCU |
| Packaging | Tape & Reel (TR) |
| Mounting-Style | SMD/SMT |
| Package-Case | 30-LSSOP (0.220", 5.60mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 30-SSOP |
| Number-of-I-O | 21 I/O |
| Speed | 10MHz |
| EEPROM-Size | - |
| Core-Processor | F2MC-8L |
| RAM-Size | 512 x 8 |
| Program Memory | Mask ROM |
| Peripherals | POR, PWM, WDT |
| Connectivity | Serial I/O, UART/USART |
| Voltage-Supply-Vcc-Vdd | 2.2 V ~ 5.5 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | 16KB (16K x 8) |
| Data-Converters | A/D 8x10b |
| Oscillator-Type | External |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2.2 V to 5.5 V |
| Interface-Type | UART Serial I/O |
| Core | F2MC-8L |
| Processor-Series | MB89930B |
| Software Development Kit | - |
| Data-Bus-Width | 8 bit |
| Supply-Voltage-Max | 6 V |
| Supply-Voltage-Min | 0.3 V |
| Package-Case | SSOP-30 |
| Maximum-Clock-Frequency | 10 MHz |
| Analog Power Supply | - |
| Number-of-ADC-Channels | 8 channels |
| Input/output | 21 I/O |
| Data-RAM-Size | 512 B |
| Data-ROM-Size | - |
| I-O-Voltage | - |
| Number-of-Timers-Counters | - |
| Watchdog-Timers | Watchdog Timer |
| ADC-Resolution | 10 bit |
| Data-RAM-Type | - |
| Data-ROM-Type | - |
| DAC-Resolution | - |
The MB89930A series is a line of single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such, timers, a serial interface, an A/D converter and an external interrupt.
• Models that support + 125 °C
• MB89600 Series CPU core
• Maximum memory space : 64 Kbytes
• Minimum execution time : 0.4 µs/10 MHz
• Interrupt processing time : 3.6 µs/10 MHz
• I/O ports : Max 21channels
• 21-bit timebase timer
• 8-bit PWM timer
• 8/16-bit capture timer/counter
• 10-bit A/D converter : 8 channels
• UART8-bit serial I/O
• External interrupt 1 : 3 channels
• External interrupt 2 : 8 channels
• Wild Register : 2 bytes
• Low-power consumption modes ( sleep mode, and stop mode)
• SSOP-30 and MQFP-48 package
• CMOS Technology
