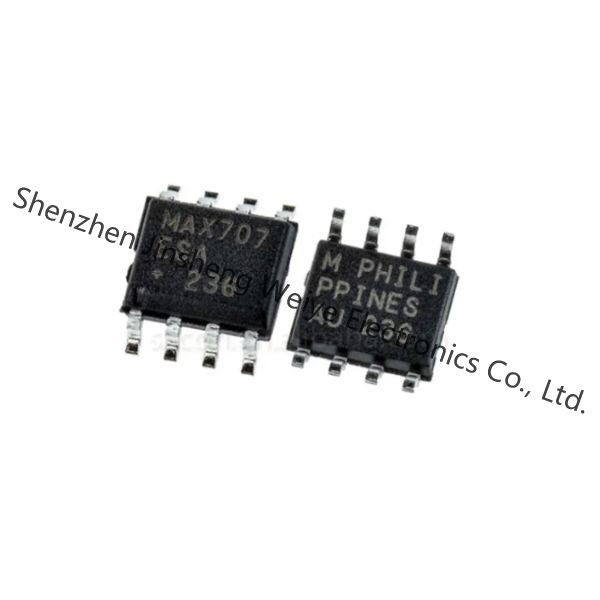

| Place of Origin | Call |
| Brand Name | Maxim Integrated |
| Certification | ROHS |
| Model Number | MAX707ESA+ |
MAX707ESA+ DatasheetThe MAX705-MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.
1) A reset output during power-up, power-down, and
brownout conditions.
2) An independent watchdog output that goes low if
the watchdog input has not been toggled within 1.6
seconds.
3) A 1.25V threshold detector for power-fail warning,
low-battery detection, or for monitoring a power sup
ply other than +5V.
4) An active-low manual-reset input.
Two supply-voltage monitor levels are available: The MAX705/MAX707/MAX813L generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/MAX708 generate a reset pulse below 4.40V. All four parts are available in 8-pin DIP, SO and µMAX packages.
♦ µMAX Package: Smallest 8-Pin SO
♦ Guaranteed RESET Valid at VCC = 1V
♦ Precision Supply-Voltage Monitor
4.65V in MAX705/MAX707/MAX813L
4.40V in MAX706/MAX708
♦ 200ms Reset Pulse Width
♦ Debounced TTL/CMOS-Compatible
Manual-Reset Input
♦ Independent Watchdog Timer—1.6sec Timeout
(MAX705/MAX706)
♦ Active-High Reset Output
(MAX707/MAX708/MAX813L)
♦ Voltage Monitor for Power-Fail or Low-Battery Warning
Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical µP Power Monitoring
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Supervisors |
| Series | MAX707 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active High Active Low Push-Pull |
| Supplier-Device-Package | 8-SOIC |
| Output | Push-Pull, Push-Pull |
| Reset | Active High/Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 4.65V |
| Pd-Power-Dissipation | 471 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 500 uA |
| Battery-Backup-Switching | No Backup |
| Part-#-Aliases | MAX707 |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.2 V |
| Package-Case | SOIC-8 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 4.65 V |
| Input Monitoring | 1 Input |
| Manual-Reset | Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | Yes |
| Reset-Delay-Time | 280 ms |
| Overvoltage-Threshold | 4.75 V |
| Undervoltage-Threshold | 4.5 V |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MAX707ESA-T Power Circuits |
1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, SOIC-8 | Rochester Electronics LLC | MAX707ESA+ vs MAX707ESA-T |
| MAX707ESA+T Power Circuits |
Power Supply Support Circuit, Adjustable, 2 Channel, +4.65VV, CMOS, PDSO8, SO-8 | Maxim Integrated Products | MAX707ESA+ vs MAX707ESA+T |
| MAX707ESA Power Circuits |
Power Supply Support Circuit, Adjustable, 2 Channel, +4.65VV, CMOS, PDSO8, SO-8 | Maxim Integrated Products | MAX707ESA+ vs MAX707ESA |
Descriptions
Supervisory Circuits Single uPower Supervisor
