| Place of Origin | Call |
| Brand Name | Texas Instruments |
| Certification | ROHS |

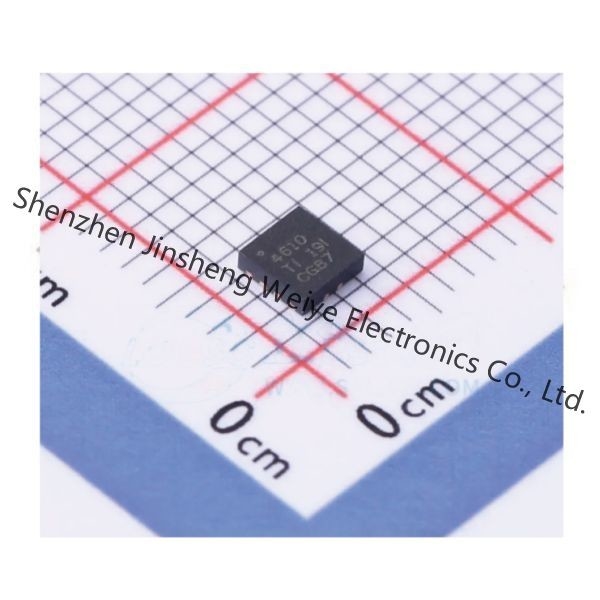

| Model Number | UCC24610DRBT |
UCC24610DRBT Datasheet| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Power Supply Controllers, Monitors |
| Series | GREEN Rectifier™ |
| Product | MOSFET Gate Drivers |
| Type | Flyback and LLC Converters |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000847 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-VDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Applications | Flyback, Forward Converters, LLC |
| Voltage-Supply | - |
| Supplier-Device-Package | 8-SON Exposed Pad (3x3) |
| Configuration | Single |
| Voltage-Input | 4.5 V ~ 5.5 V |
| Current-Supply | 2.15mA |
| Number-of-Outputs | 1 Output |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 4.5 V to 5.5 V |
| Operating-Supply-Current | 70 uA |
| Output-Current | 3 A |
| Fall-Time | 9 ns |
| Rise-Time | 14 ns |
| Software Development Kit | UCC24610EVM-693 |
| Supply-Voltage-Max | 6.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | VSON-8 |
| Number-of-Drivers | 1 Driver |
| Maximum-Turn-Off-Delay-Time | 35 ns |
| Turn-On Delay Time | 70 ns |
Form,Package,Functional compatible component
