| Model Number | UCC28C43D |

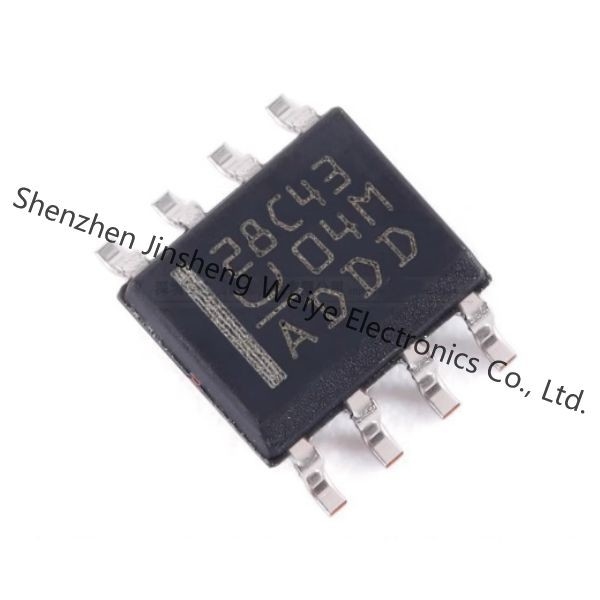

UCC28C43D DatasheetDescription: The UCC28C43D is a DC-DC switching controller from Texas Instruments Integrated Circuits (ICs). It is an 8-SOIC package with a positive output configuration and a tube alternate packaging. It has a maximum duty cycle of 0.96, a package case of 8-SOIC (0.154", 3.90mm Width), a unit weight of 0.002561 oz, an operating temperature range of -40 C to +105 C, an output current of 200 mA, one output, and a topology of boost, flyback, and forward converter. The input voltage maximum is 40 V and the output voltage maximum is 40 V.
Features:
- 8-SOIC package with positive output configuration and tube alternate packaging
- Maximum duty cycle of 0.96
- Package case of 8-SOIC (0.154", 3.90mm Width)
- Unit weight of 0.002561 oz
- Operating temperature range of -40 C to +105 C
- Output current of 200 mA
- One output
- Topology of boost, flyback, and forward converter
- Input voltage maximum of 40 V
- Output voltage maximum of 40 V
Applications:
The UCC28C43D is suitable for a variety of applications, including DC-DC converters, power supplies, and motor control. It is also suitable for automotive, industrial, and consumer applications.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | DC DC Switching Controllers |
| Series | UCC28C43 |
| Type | Current Mode PWM Controllers |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.002561 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | - 40 C to + 105 C |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 105°C (TJ) |
| Output-Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Boost, Flyback, Forward Converter |
| Voltage-Supply-Vcc-Vdd | 7.6 V ~ 18 V |
| Frequency-Switching | - |
| Control-Features | Frequency Control |
| Output-Configuration | Positive |
| Output-Phases | 1 |
| Duty-Cycle-Max | 0.96 |
| Synchronous-Rectifier | No |
| Clock-Sync | No |
| Serial-Interfaces | - |
| Isolation | Isolated |
| Maximum Operating Temperature | + 105 C |
| Output-Voltage | 18 V |
| Operating-Supply-Current | 2.3 mA |
| Output-Current | 200 mA |
| Switching-Frequency | 1 MHz |
| Package-Case | SOIC-8 |
| Duty-Cycle-Max | 100 % |
| Input-Supply-Voltage-Min | 7.6 V |
| Input-Supply-Voltage-Max | 18 V |
