| Place of Origin | Call |
| Brand Name | Texas Instruments |
| Certification | ROHS |
| Model Number | TPS3831L30DQNR |
TPS3831L30DQNR DatasheetThis device is a dual center tap Schottky rectifier suited for switch mode power supply and high
frequency DC to DC converters. Packaged in D2PAK, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Low thermal resistance
■ Avalanche rated
■ AEC-Q101 qualified
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Supervisors |
| Series | TPS3831L30 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |

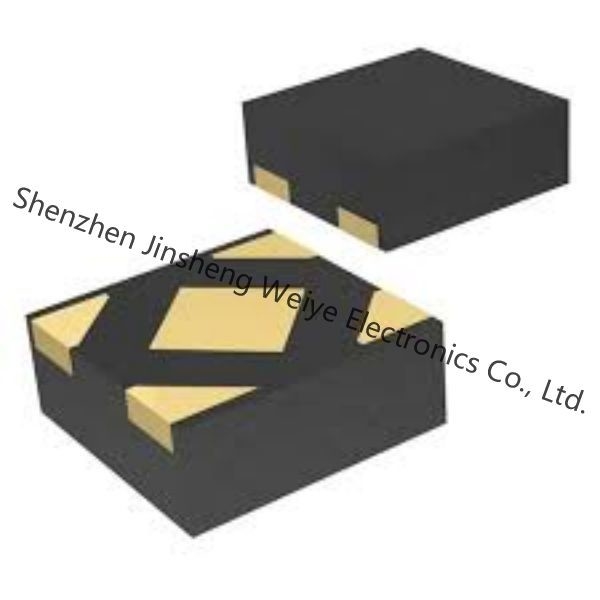

| Package-Case | 4-XDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Push-Pull |
| Supplier-Device-Package | 4-X2SON (1x1) |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 120 ms Minimum |
| Voltage-Threshold | 2.63V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 150 nA |
| Battery-Backup-Switching | Backup |
| Supply-Voltage-Max | 6.5 V |
| Supply-Voltage-Min | 0.6 V |
| Package-Case | X2SON-4 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 3 V |
| Input Monitoring | 1 Input |
| Manual-Reset | Manual Reset |
| Power-Fail-Detection | No |
| Reset-Delay-Time | 200 ms |
Form,Package,Functional compatible component
