| Place of Origin | Call |
| Brand Name | Texas Instruments |
| Certification | ROHS |

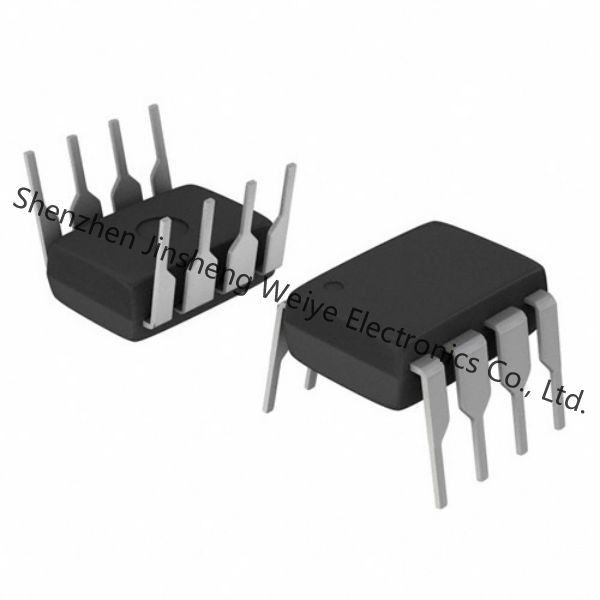

| Model Number | REF102APG4 |
REF102APG4 DatasheetThe REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
Initial accuracy: ±2 mV maximum
Temperature coefficient: 5 ppm/°C maximum
Low supply current: 45 μA maximum
Sleep mode: 15 μA maximum
Low dropout voltage
Load regulation: 4 ppm/mA
Line regulation: 4 ppm/V
High output current: 30 mA
Short-circuit protection
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Voltage Reference |
| Series | - |
| Packaging | Tube Alternate Packaging |
| Package-Case | 8-DIP (0.300", 7.62mm) |
| Operating-Temperature | -25°C ~ 85°C (TA) |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | 8-PDIP |
| Tolerance | ±0.1% |
| Voltage-Input | 11.4 V ~ 36 V |
| Current-Supply | 1.4mA |
| Current-Output | 10mA |
| Reference-Type | Series |
| Output Voltage | 10V |
| Voltage-Output-Max | - |
| Temperature-Coefficient | 10ppm/°C |
| Noise-0#1Hz-to-10Hz | 5μVp-p |
| Noise-10Hz-to-10kHz | - |
| Current-Cathode | - |
Form,Package,Functional compatible component
