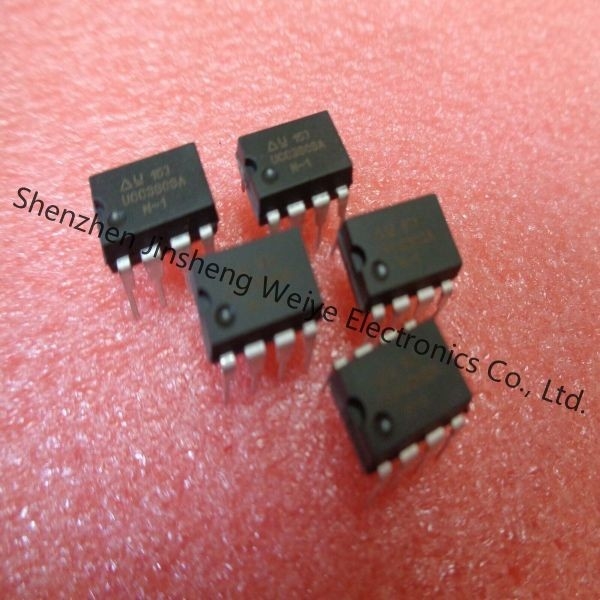

UCC3808AN-1 Switching Controllers Low-Pwr Current-Mode Push-Pull PWM

                                                    UCC3808AN-1 Datasheet

Product Details

Description: The UCC3808AN-1 is a Texas Instruments integrated circuit (IC) DC DC switching controller. It is packaged in an 8-PDIP tube alternate packaging and has a duty cycle of 49%. It features frequency control, voltage start-up of 12.5V, output isolation, 8-DIP (0.300", 7.62mm) package case, 8.3 V ~ 15 V voltage supply Vcc/Vdd, 1MHz frequency switching, boost, buck, half-bridge, push-pull topology, 1.5A current limit, adjustable voltage output, and an operating temperature range of -40°C ~ 85°C.
Applications of the UCC3808AN-1 include DC-DC converters, power supplies, motor control, and other power management applications

Specifications

Form,Package,Functional compatible component

Descriptions
