| Place of Origin | Call |
| Brand Name | Renesas |
| Certification | ROHS |
| Model Number | ISL6298-2CR4Z-T |

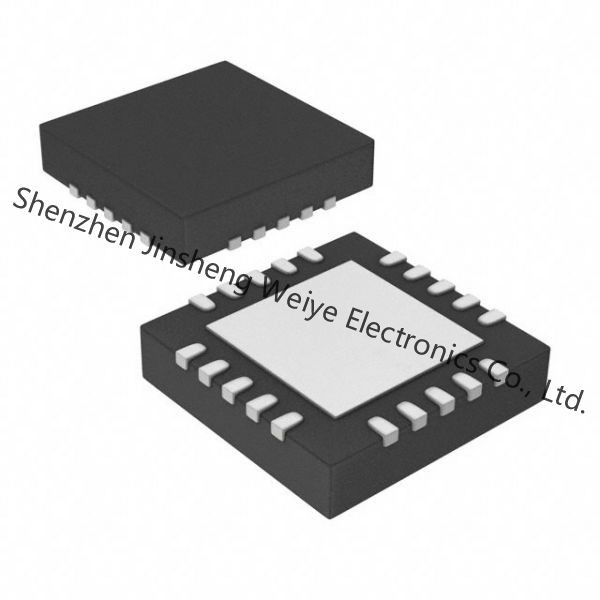

ISL6298-2CR4Z-T DatasheetLi-ion/Li-Polymer Battery Charger
The ISL6298 is an integrated single-cell Li-ion or Li-polymer battery charger optimized for low current applications. The targeted applications include mini-disk (MD) players, Blue Tooth headsets, or other applications that use low-capacity battery cells.
• Complete Charger for Single-Cell Li-ion Batteries
• Integrated Pass Element and Current Sensor
• No External Blocking Diode Required
• 1% Voltage Accuracy
• Programmable Current Limit up to 450mA
• Programmable End-of-Charge Current
• Preconditioning with 20% Fast Charge Current
• 10% Accuracy at 250mA
• Charge Current Thermal Foldback
• NTC Thermistor Interface for Battery Temperature Monitor
• User Programmable Safety Timer
• Ambient Temperature Range: -20°C to 70°C
• Thermally-Enhanced QFN Packages
• Pb-Free Plus Anneal Available (RoHS Compliant)
• MD Players, Blue-Tooth Headsets and MP3 Players
• Portable Instruments
• PDAs, Cell Phones and Smart Phones
• Stand-Alone Chargers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Battery Management |
| Series | ISL6298 |
| Product | Charge Management |
| Packaging | Cut Tape (CT) Alternate Packaging |
| Package-Case | 16-VQFN Exposed Pad |
| Operating-Temperature | -20°C ~ 70°C (TA) |
| Battery-Chemistry | Lithium-Ion/Polymer |
| Number-of-Cells | 1 Cell |
| Interface | - |
| Supplier-Device-Package | 16-QFN-EP (4x4) |
| Fault-Protection | Over Temperature |
| Current-Charging | Constant - Programmable |
| Programmable-Features | Timer |
| Electric current collectors | 450mA |
| Battery pack | 4.2V |
| Supply Voltage | 6.5V |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | - 20 C |
| Output-Voltage | 4.2 V |
| Output-Current | 75 mA to 450 mA |
| Package-Case | QFN EP |
| Battery-Type | Li-Ion Li-Pol |
Form,Package,Functional compatible component
