| Place of Origin | Call |
| Brand Name | Renesas |
| Certification | ROHS |
| Model Number | ISL6441IR-T |
ISL6441IR-T Datasheet1.4MHz Dual, 180° Out-of-Phase, Step-Down PWM and Single Linear Controller
The ISL6441 is a high-performance, triple-output controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications. Each output is adjustable down to 0.8V. The two PWMs are synchronized 180o out of phase reducing the RMS input current and ripple voltage.
• Wide Input Supply Voltage Range
- 5.6V to 24V
- 4.5V to 5.6V
• Three Independently Programmable Output Voltages
• Switching Frequency . . . . . . . . . . . . . . . . . . . . . . .1.4MHz
• Out of Phase PWM Controller Operation
- Reduces Required Input Capacitance and Power Supply Induced Loads
• No External Current Sense Resistor
- Uses Lower MOSFET’s rDS(ON)
• Bi-directional Frequency Synchronization for Synchronizing Multiple ISL6441s
• Programmable Soft-Start
• Extensive Circuit Protection Functions
- PGOOD
- UVLO
- Overcurrent
- Overtemperature
- Independent Shutdown for Both PWMs
• Excellent Dynamic Response
- Voltage Feed-Forward with Current Mode Control

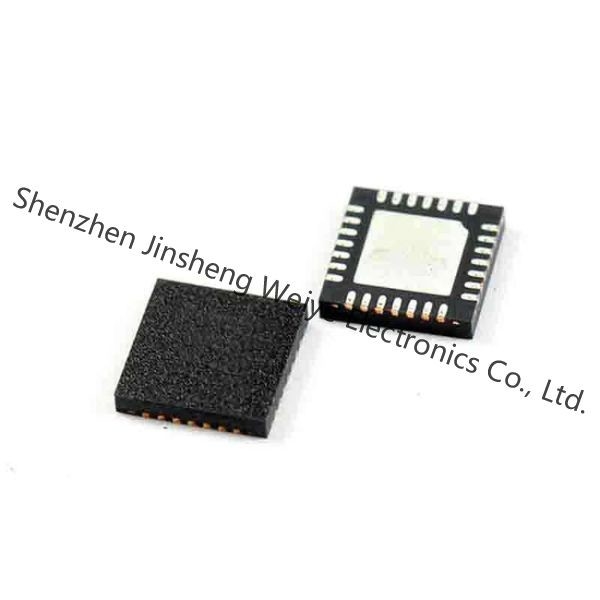

• QFN Package:
- QFN - Compliant to JEDEC PUB95 MO-220
QFN - Quad Flat No Leads - Package Outline
- Near Chip Scale Package footprint, which improves
PCB efficiency and has a thinner profile
• Pb-Free Plus Anneal Available (RoHS Compliant)
• Power Supplies with Multiple Outputs
• xDSL Modems/Routers
• DSP, ASIC, and FPGA Power Supplies
• Set-Top Boxes
• Dual Output Supplies for DSP, Memory, Logic, µP Core and I/O
• Telecom Systems
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Specialized Power Management IC |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | 28-VFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Applications | Power Supplies |
| Voltage-Supply | 5.6 V ~ 24 V |
| Supplier-Device-Package | 28-QFN (5x5) |
| Current-Supply | 2mA |
Form,Package,Functional compatible component
Descriptions
Power Supplies PMIC 28-QFN (5x5)
