| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |
| Model Number | FAN2505S30X |
FAN2505S30X DatasheetThe FAN2504/05 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM and TDMA cellular handsets, Laptop and Notebook portable computers, and other portable devices. Features include extremely low power consumption and low shutdown current, low dropout voltage, exceptional loop stability able to accommodate a wide variety of external capacitors, and the compact SOT23-5 surface-mount package. The FAN2504/05 family of products offer significant improvements over older BiCMOS designs and are pin-compatible with many popular devices. The output is thermally protected against overload.
• Ultra Low Power Consumption
• 200 mV dropout voltage at 200 mA
• 75 µA ground current at 200 mA
• Enable/Shutdown Control

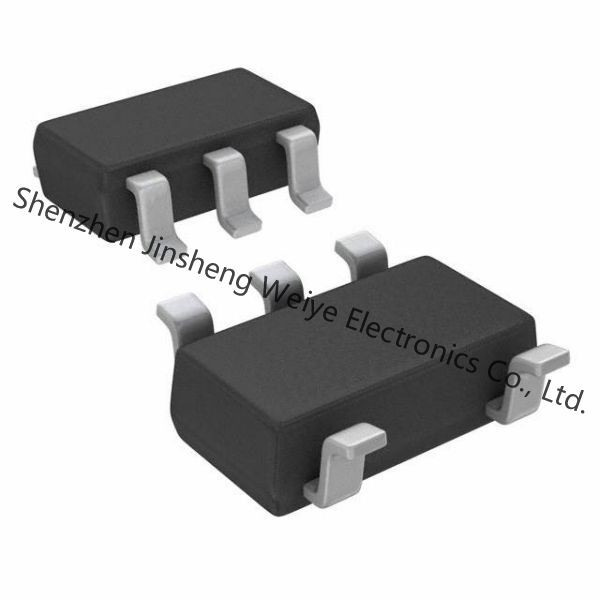

• SOT23-5 package
• Thermal limiting
• 300 mA peak current
• Cellular Phones and accessories
• PDAs
• Portable cameras and video recorders
• Laptop, notebook and palmtop computers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SOT-23-5 |
| Voltage-Input | Up to 6.5V |
| Current-Output | 200mA |
| Voltage-Output | 3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.17V @ 200mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
Form,Package,Functional compatible component
