| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |

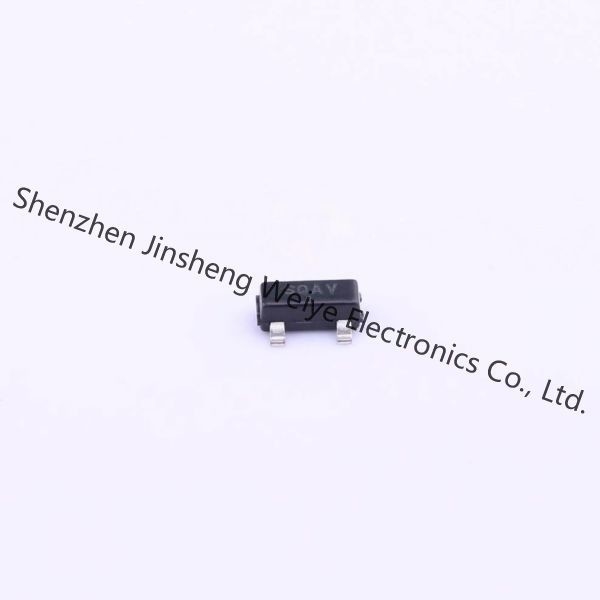

| Model Number | MAX810MTRG |
MAX810MTRG DatasheetThe MAX809 and MAX810 are cost−effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required.
• Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
• Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
• Four Guaranteed Minimum Power−On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)
• RESET Output Guaranteed to VCC = 1.0 V.
• Low Supply Current
• Compatible with Hot Plug Applications
• VCC Transient Immunity
• No External Components
• Wide Operating Temperature: −40°C to 105°C
• Pb−Free Packages are Available
• Computers
• Embedded Systems
• Battery Powered Equipment
• Critical Microprocessor Power Supply Monitoring
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Supervisors |
| Series | MAX810 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.050717 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-236-3, SC-59, SOT-23-3 |
| Operating-Temperature | -40°C ~ 105°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Push-Pull |
| Supplier-Device-Package | SOT-23-3 (TO-236) |
| Output | Push-Pull, Totem Pole |
| Reset | Active High |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 4.38V |
| Maximum Operating Temperature | + 105 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 0.8 uA |
| Battery-Backup-Switching | No Backup |
| Part-#-Aliases | MAX810LTRG |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1 V |
| Package-Case | SOT-23-3 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 1.2 V to 4.9 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | No |
| Reset-Delay-Time | 460 ms |
| Overvoltage-Threshold | 4.45 V |
| Undervoltage-Threshold | 4.38 V |
Form,Package,Functional compatible component
