LM337BTG Datasheet1.5 A, Adjustable Output, Negative Voltage Regulator
The LM337 is an adjustable 3−terminal negative voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of −1.2 V to − 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof. The LM337 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM337 can be used as a precision current regulator.
•Output Current in Excess of 1.5 A
•Output Adjustable between −1.2 V and −37 V
•Internal Thermal Overload Protection
•Internal Short Circuit Current Limiting Constant with Temperature
•Output Transistor Safe−Area Compensation
•Floating Operation for High Voltage Applications
•Eliminates Stocking many Fixed Voltages
•Available in Surface Mount D2PAK and Standard 3−Lead Transistor Package
•These Devices are Pb−Free and are RoHS Compliant

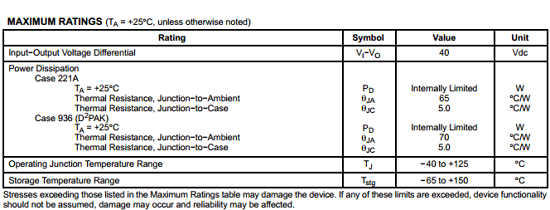

Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | LM337 |
| Packaging | Tube |
| Unit-Weight | 0.211644 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-3 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Adjustable |
| Supplier-Device-Package | TO-220AB |
| Voltage-Input | Down to -40V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1.5A |
| Voltage-Output | -1.2 V ~ -37 V |
| Regulator-Topology | Negative Adjustable |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Polarity | Negative |
| Output-Voltage | - 1.2 V to - 37 V |
| Input-Voltage-MAX | - 40 V |
| Output-Current | 1.5 A |
| Input-Voltage-MIN | - 4.2 V |
| Load-Regulation | 1 % / V |
| Package-Case | TO-220-3 |
| Line-Regulation | 0.04 % / V |
| Power Supply Ripple Rejection (PSRR) | 77 dB |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| NTE957 Power Circuits |
Adjustable Negative Standard Regulator, 1.2V Min, 37V Max, PSFM3, TO-220, 3 PIN | NTE Electronics Inc | LM337BTG vs NTE957 |
| 7703406UA Power Circuits |
Adjustable Negative Standard Regulator, 1.2V Min, 1.3V Max, BIPolar, TO-257, 3 PIN | Micross Components | LM337BTG vs 7703406UA |
| LM337KC Power Circuits |
3 Pin 1.5A Adjustable Negative Voltage Regulator 3-TO-220 0 to 125 | Texas Instruments | LM337BTG vs LM337KC |
| LT337AT Power Circuits |
LT337A - Negative Adjustable Regulator; Package: TO-220; Pins: 3; Temperature Range: 0°C to 70°C | Linear Technology | LM337BTG vs LT337AT |
| LM137 Power Circuits |
1.2 V-37V ADJUSTABLE NEGATIVE REGULATOR, MBFM2 | STMicroelectronics | LM337BTG vs LM137 |
| LM337SP Power Circuits |
Three-terminal adjustable negative voltage regulators | STMicroelectronics | LM337BTG vs LM337SP |
| LM237KCSE3 Power Circuits |
3 Pin 1.5A Adjustable Negative Voltage Regulator 3-TO-220 -25 to 150 | Texas Instruments | LM337BTG vs LM237KCSE3 |
| 957 Connectors |
Telecom and Datacom Connector, | Keystone Electronics Corp | LM337BTG vs 957 |
| LM337BT Power Circuits |
1.2 V-37V ADJUSTABLE NEGATIVE REGULATOR, PSFM3, PLASTIC, TO-220, 3 PIN | Motorola Mobility LLC | LM337BTG vs LM337BT |
| IP137AIG Power Circuits |
1.2 V-37V ADJUSTABLE NEGATIVE REGULATOR, MSFM3, HERMETIC SEALED, METAL, TO-257AA, 3 PIN | TT Electronics Power and Hybrid / Semelab Limited | LM337BTG vs IP137AIG |
