| Model Number | FSFR2000 |

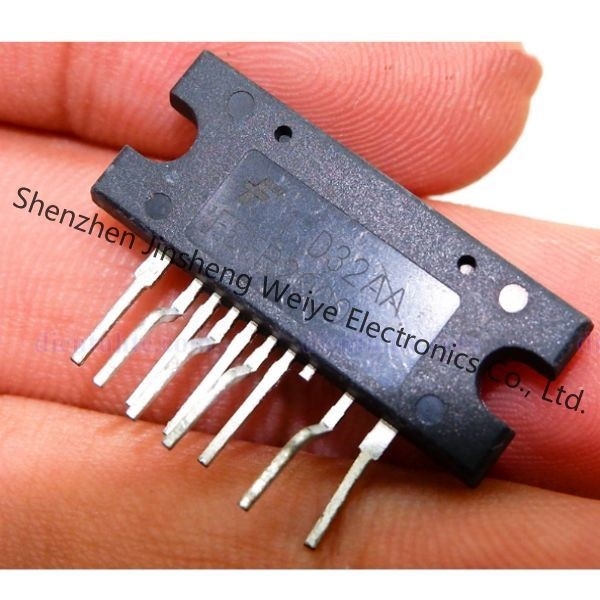

FSFR2000 DatasheetFSFR-series is a highly integrated power switch family specially designed for high-efficiency half-bridge resonant converters. Offering everything necessary to build a reliable and robust resonant converter, the FSFR series simplifies designs and improves productivity, while improving performance.
Variable Frequency Control with 50% Duty Cycle for Half-bridge Resonant Converter Topology
High Efficiency through Zero Voltage Switching (ZVS)
Internal Super-FETs with Fast-Recovery Type Body Diode (trr=120ns)
Fixed Dead Time (350ns) Optimized for MOSFETs
Up to 300kHz Operating Frequency
Pulse Skipping for Frequency Limit (Programmable) at Light-Load Condition
Remote On/Off Control Using Control Pin
Protection Functions: Over-Voltage Protection (OVP), Overload Protection (OLP), Over-Current Protection (OCP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD)
PDP TV and LCD TV
Desktop PC and Server
Adapter
Telecom Power
Audio Power
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | AC DC Converters, Offline Switchers |
| Series | FSFR |
| Product | Power Switches |
| Packaging | Tube |
| Unit-Weight | 0.130818 oz |
| Mounting-Style | Through Hole |
| Package-Case | 9-SIP |
| Operating-Temperature | -40°C ~ 130°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 9-SIP |
| Watt | 350W |
| Number-of-Outputs | 1 Output |
| Output-Isolation | Isolated |
| Internal-Switch-s | Yes |
| Voltage-Breakdown | 500V |
| Topology | Half-Bridge |
| Voltage-Start-Up | 14.5V |
| Voltage-Supply-Vcc-Vdd | 11.3 V ~ 25 V |
| Duty-Cycle | 50% |
| Frequency-Switching | Up to 300kHz |
| Fault-Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control-Features | EN, Frequency Control |
| Maximum Operating Temperature | + 130 C |
| Operating temperature range | - 40 C |
| Package-Case | SIP-9 |
| On-Resistance-Max | 0.53 Ohms |
