| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |

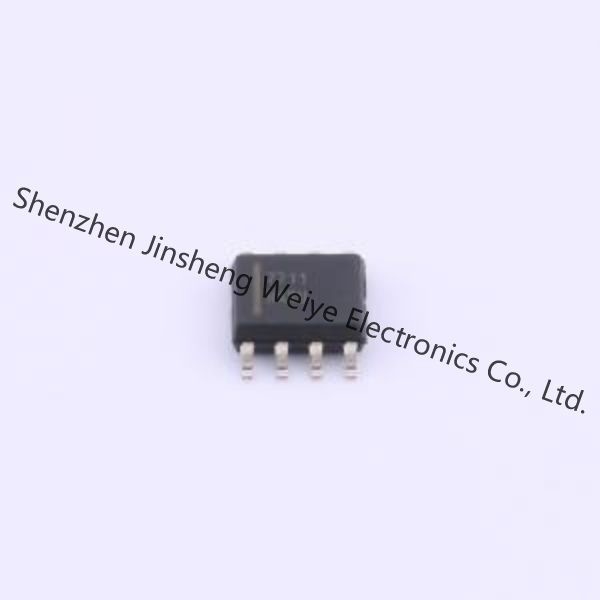

| Model Number | FAN7711MX |
FAN7711MX DatasheetThe FAN7071 is an IC to drive a landing correction coil of CRT monitor. The circuit is suitable for low power consumption design
• Built in Power Amplifier (200mA )
• Low Stanby Current
• Incorporating 2 Circuit
• CRT Monitor
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Lighting, Ballast Controllers |
| Series | - |
| Product | MOSFET Gate Drivers |
| Type | Ballast Controller |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.005044 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Frequency | 48.7kHz ~ 57.3kHz |
| Operating-Temperature | -25°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 12.4 V ~ 15.2 V |
| Configuration | Non-Inverting |
| Current-Supply | 3.2mA |
| current sources and sinks | - |
| Dimming | No |
| Pd-Power-Dissipation | 0.625 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 25 C |
| Operating-Supply-Current | 3.2 mA |
| Output-Current | 650 mA |
| Fall-Time | 25 ns |
| Rise-Time | 45 ns |
| Supply-Voltage-Max | 15.2 V |
| Supply-Voltage-Min | 12.4 V |
| Package-Case | SOP-8 |
| Number-of-Drivers | 2 Driver |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| FAN7711M Drivers And Interfaces |
EL Driver, PDSO8, MS-012AA SOP-8 | Fairchild Semiconductor Corporation | FAN7711MX vs FAN7711M |
| FAN7711MX Drivers And Interfaces |
Electronic Ballast Controller, 3000-REEL | ON Semiconductor | FAN7711MX vs FAN7711MX |
Descriptions
Gate Drivers Elec Ballast Control
