| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |
| Model Number | UC2845BD1R2 |

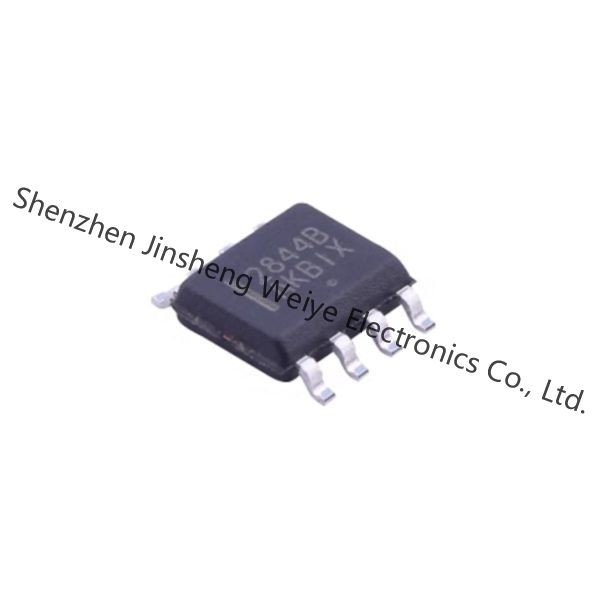

UC2845BD1R2 DatasheetThe UC3844B, UC3845B series are high performance fixed frequency current mode controllers. They are specifically designed for Off−Line and dc−dc converter applications offering the designer a cost−effective solution with minimal external components. These integrated circuits feature an oscillator, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.
• Trimmed Oscillator for Precise Frequency Control
• Oscillator Frequency Guaranteed at 250 kHz
• Current Mode Operation to 500 kHz Output Switching Frequency
• Output Deadtime Adjustable from 50% to 70%
• Automatic Feed Forward Compensation
• Latching PWM for Cycle−By−Cycle Current Limiting
• Internally Trimmed Reference with Undervoltage Lockout
• High Current Totem Pole Output
• Undervoltage Lockout with Hysteresis
• Low Startup and Operating Current
• Pb−Free Packages are Available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | DC DC Switching Controllers |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -25°C ~ 85°C (TA) |
| Output-Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Boost, Flyback |
| Voltage-Supply-Vcc-Vdd | 7.6 V ~ 30 V |
| Frequency-Switching | 52kHz |
| Control-Features | Frequency Control |
| Output-Configuration | Positive or Negative, Isolation Capable |
| Output-Phases | 1 |
| Duty-Cycle-Max | 0.48 |
| Synchronous-Rectifier | No |
| Clock-Sync | No |
| Serial-Interfaces | - |
Form,Package,Functional compatible component
Descriptions
