| Place of Origin | Call |
| Brand Name | DIODES INCORPORATED |
| Certification | ROHS |
| Model Number | ZXGD3004E6TA |

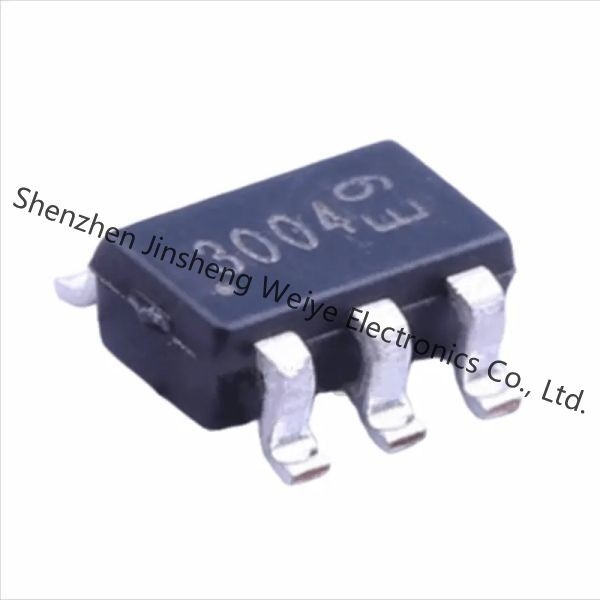

ZXGD3004E6TA DatasheetDescription: The ZXGD3004E6TA is a non-inverting integrated circuit gate driver from Diodes Incorporated. It has a maximum output current of 1.9 A and an operating temperature range of -55 C. It has a single driver, a power dissipation of 1.1 W, and a mounting style of SMD/SMT. It has an operating supply current of 50 nA and a unit weight of 0.000529 oz.
Features:
- Non-inverting configuration
- Maximum output current of 1.9 A
- Operating temperature range of -55 C
- Single driver
- Power dissipation of 1.1 W
- Mounting style of SMD/SMT
- Operating supply current of 50 nA
- Unit weight of 0.000529 oz
Applications:
The ZXGD3004E6TA is suitable for use in a variety of applications, including motor control, power supplies, and automotive systems. It can also be used in industrial and consumer electronics.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | DIODES INCORPORATED |
| Product Category | Gate Drivers |
| Series | ZXGD3004 |
| Product | MOSFET Gate Drivers |
| Type | Non-Inverting |
| Packaging | Reel |
| Unit-Weight | 0.000529 oz |
| Mounting-Style | SMD/SMT |
| Configuration | Non-Inverting |
| Number-of-Outputs | 1 Output |
| Pd-Power-Dissipation | 1.1 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 55 C |
| Operating-Supply-Current | 50 nA |
| Output-Current | 1.9 A |
| Fall-Time | 12.4 ns |
| Rise-Time | 13.4 ns |
| Supply-Voltage-Max | 40 V |
| Package-Case | SOT-23-6 |
| Number-of-Drivers | 1 Driver |
Form,Package,Functional compatible component
