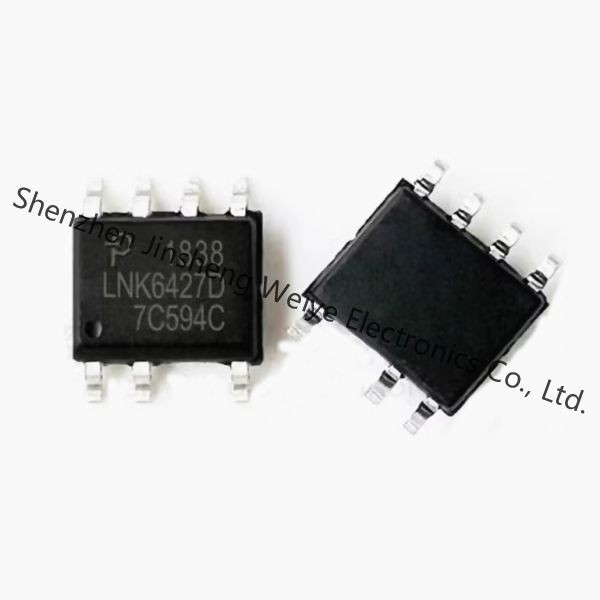

LNK6427D Datasheet[Power Integrations, Inc.]
Description
The LinkSwitch™-3 family of ICs dramatically simplifies low power CV/CC charger designs by eliminating an optocoupler and secondary control circuitry. The device introduces a revolutionary control technique to provide very accurate output voltage and current regulation, compen-sating for transformer and internal parameter tolerances along with input voltage variations.
Dramatically Simplifies CV/CC Converters
• Eliminates optocoupler and all secondary CV/CC control circuitry
• Eliminates all control loop compensation circuitry
• Compensates for transformer inductance tolerances
• Compensates for input line voltage variations
• Compensates for cable voltage drop
• Compensates for external component temperature variations
• Very accurate IC parameter tolerances using test trimming technology
• Frequency jittering greatly reduces EMI filter cost
• Programmable switching frequency up to 85 kHz to reduce transformer size
• Minimum operation frequency fixed to improve transient load response
• Auto-restart protection reduces power delivered by >90% for output short-circuit and control loop faults (open and shorted components)
• Hysteretic thermal shutdown – automatic recovery reduces power supply returns from the field
• Meets high-voltage creepage requirements between DRAIN and all other pins both on the PCB and at the package
• Easily meets all global energy efficiency regulations with no added components
• No-load consumption at 230 VAC input with bias winding <10 mW for LNK64x4-LNK64x6 and <30 mW for LNK64x7-LNK64x8
• ON/OFF control provides constant efficiency down to very light loads – ideal for CEC regulations
• No current sense resistors – maximizes efficiency
• Halogen free and RoHS compliant package
• Chargers for cell/cordless phones, PDAs, MP3/portable audio devices, adapters, etc.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Power Integrations |
| Product Category | AC DC Converters, Offline Switchers |
| Series | LinkSwitch?-3 |
| Type | CV/CC Switcher |
| Packaging | Tube Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Tradename | LinkSwitch |
| Operating-Temperature-Range | - 40 C to + 150 C |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) 7 leads |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-SO |
| Watt | 7.5W |
| Number-of-Outputs | 1 Output |
| Output-Isolation | Isolated |
| Internal-Switch-s | Yes |
| Voltage-Breakdown | 725V |
| Topology | Flyback |
| Voltage-Start-Up | - |
| Voltage-Supply-Vcc-Vdd | - |
| Duty-Cycle | 55% |
| Frequency-Switching | Up to 85kHz |
| Fault-Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control-Features | - |
| Output-Power | 7.5 W |
| Maximum Operating Temperature | + 150 C |
| Operating-Supply-Current | 700 mA |
| Output-Current | 1 A |
| Switching-Frequency | 85 kHz |
| Package-Case | SO-8C-8 |
| Input-Supply-Voltage-Min | 90 VAC |
| Input-Supply-Voltage-Max | 264 VAC |
Form,Package,Functional compatible component
