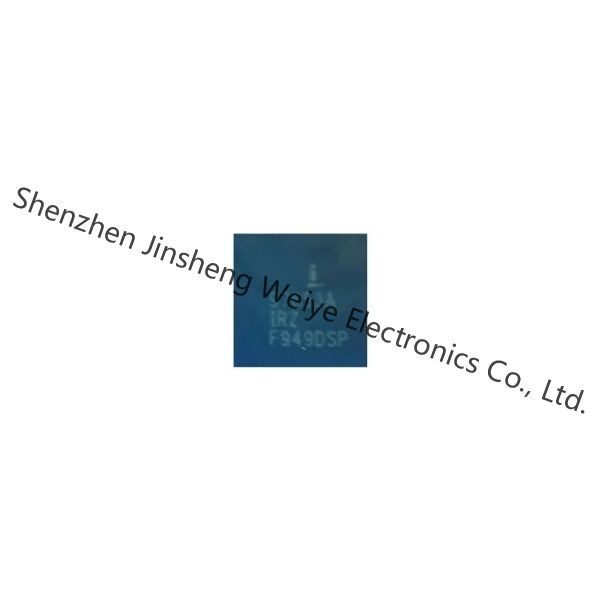

ISL97653AIRZ Switching Controllers 5-CH INTEGRTD LCD SUPPLY W/TEMP SENSOR

                                                    ISL97653AIRZ Datasheet

Product Details

The ISL97653A represents a fully integrated supply IC for LCD-TV applications. With an input operating range of 4V to 14V, both commonly used LCD-TV input supplies, 5V and 12V, are supported. An AVDD supply up to 20V is generated by a high-performance PWM BOOST converter with an integrated 4.4A FET. VON is generated using an integrated charge pump with on-chip diodes and can be modulated using an on-chip VON slice control circuit. VOFF is generated using an integrated charge pump controller. Additionally, the chip allows for two logic supplies. A buck regulator with an included 2.5A high side switch is used for the main logic output and an internal LDO controller can be used to generate a second logic LDO output.

Features

• 5V to 14V Input Supply
• Integrated 4.4A Boost Converter
• Integrated VON Charge Pump and VON Slice Circuit
• Integrated VOFF Charge Pump Output
• Integrated 2.5A Buck Converter
• LDO Controller for an Additional Logic Supply
• High Voltage Stress (HVS) Test Mode
• Thermal Shutdown
• 40 Ld QFN (6mmx6mm) Package
• Pb-Free (RoHS Compliant)

Applications

• LCD-TVs
• Industrial/Medical LCD Displays

Specifications

Attribute	Attribute Value
Manufacturer	Renesas
Product Category	Specialized Power Management IC
Series	ISL97653A
Product	Integrated Charge Pump Controllers
Packaging	Tube
Unit-Weight	0.004138 oz
Mounting-Style	SMD/SMT
Package-Case	40-VFQFN Exposed Pad
Operating-Temperature	-40°C ~ 105°C
Mounting-Type	Surface Mount
Applications	LCD TV/Monitor
Voltage-Supply	4 V ~ 14 V
Supplier-Device-Package	40-QFN (6x6)
Current-Supply	4mA
Number-of-Outputs	5 Output
Topology	Buck-Boost
Shutdown	Yes
Isolation	Non-Isolated
Maximum Operating Temperature	+ 105 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	4 V to 14 V
Output-Voltage	20 V
Description-Function	A fully integrated supply IC for LCD-TV applications
Operating-Supply-Current	4 mA
Input-Voltage	14 V
Output-Current	4.4 A
Switching-Frequency	780 kHz
Package-Case	QFN-40
Duty-Cycle-Max	90 %

Form,Package,Functional compatible component
