| Place of Origin | Call |
| Brand Name | STMicroelectronics |
| Certification | ROHS |
| Model Number | TSM1011AIST |
TSM1011AIST DatasheetThe TSM1011 is a highly integrated solution for SMPS applications requiring CV (constant voltage) and CC (constant current) modes.
The TSM1011 integrates one voltage reference and two operational amplifiers (with ORed outputs —common collectors).
The voltage reference combined with one operational amplifier makes it an ideal voltage controller. The other operational amplifier, combined with few external resistors and the voltage reference, can be used as a current limiter.
■ Low voltage operation
■ Low external component count
■ Current sink output stage
■ Easy compensation
■ 2KV ESD protection
■ VOLTAGE REFERENCE:
• Fixed output voltage reference 2.545V
• 0.5% and 1% voltage precision
■ Adapters
■ Battery chargers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Battery Management |
| Series | - |
| Packaging | Alternate Packaging |

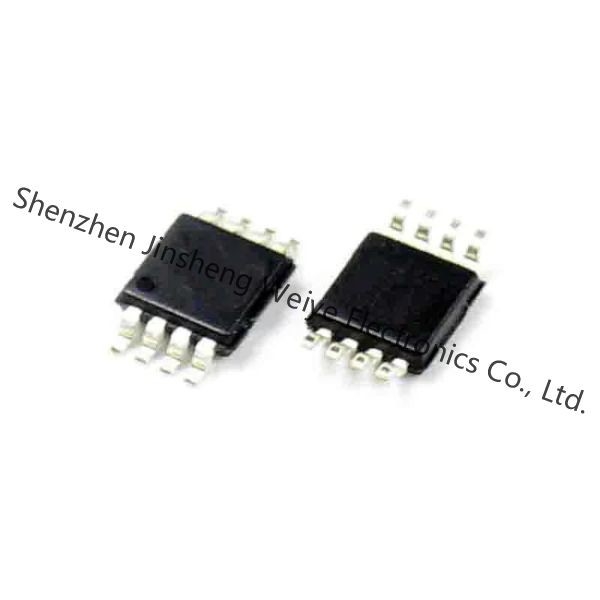

| Package-Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating-Temperature | 0°C ~ 105°C (TA) |
| Battery-Chemistry | - |
| Number-of-Cells | |
| Interface | - |
| Supplier-Device-Package | 8-MiniSO |
| Fault-Protection | - |
| Current-Charging | Constant |
| Programmable-Features | - |
| Electric current collectors | - |
| Battery pack | - |
| Supply Voltage | 28V |
Form,Package,Functional compatible component
