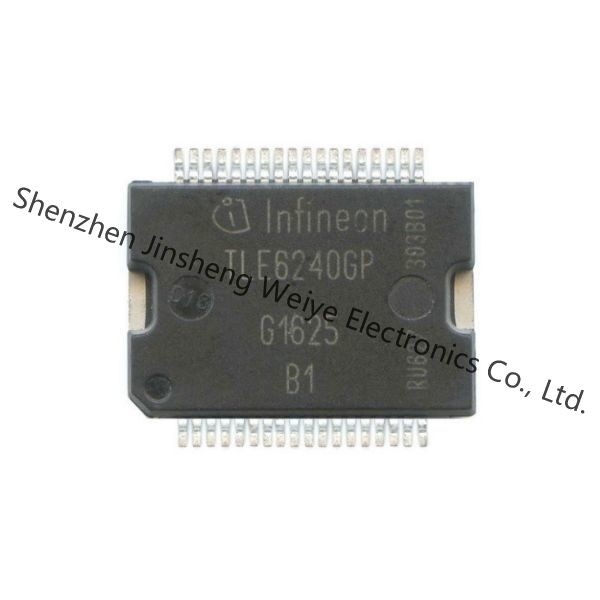

TLE6240GP Datasheet16-fold Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages. The TLE6240GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications.
• Short Circuit Protection
•Overtemperature Protection
•Overvoltage Protection
• 8 bit Serial Data Input and Diagnostic Output (SPI protocol)
• Direct Parallel Control of Four Channels for PWM Applications
• Cascadable with Other Quad Switches
• Low Quiescent Current
• µC Compatible Input
• Electostatic Discharge (ESD) Protection
Applications
• µC Compatible Power Switch for 12 V and 24 V Applications
• Switch for Automotive and Industrial System
• Solenoids, Relays and Resistive Loads
•Injectors
•Robotic controls
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon |
| Product Category | Power Distribution Switches, Load Drivers |
| Series | TLE6240 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Input-Type | - |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Output-Type | N-Channel |
| Features | Status Flag |
| Interface | SPI |
| Supplier-Device-Package | PG-DSO-36 |
| Ratio of output to input | 1899/12/30 1:01:00 |
| Number-of-Outputs | 16 Outputs |
| Voltage-Supply-Vcc-Vdd | 4.5 V ~ 5.5 V |
| Fault-Protection | Open Load Detect, Over Temperature, Over Voltage |
| Output-Configuration | Low Side |
| Rds-On-Typ | 300 mOhm, 350 mOhm, 1 Ohm |
| Voltage-Load | 45V (Max) |
| Current-Output-Max | - |
| Switch-Type | General Purpose |
| Pd-Power-Dissipation | 3300 mW |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 40 C |
| Output-Current | 500 mA |
| Part-#-Aliases | SP000627670 TLE6240GPAUMA1 TLE6240GPXT |
| Package-Case | DSO-38 |
| On-Resistance-Max | 1 Ohms |
Form,Package,Functional compatible component
Descriptions
Power Switch ICs - Power Distribution MULTI CHANNEL SWITCH
