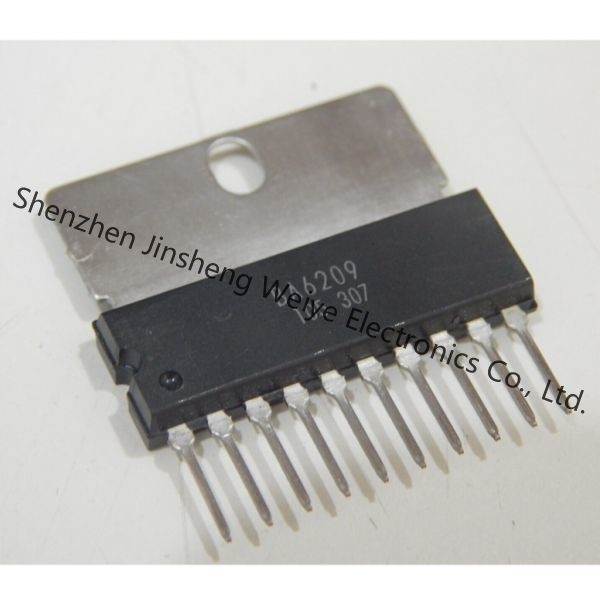

BA6209 DatasheetReversible motor driver
The BA6209 and BA6209N are reversible-motor drivers suitable for brush motors. Two logic inputs allow three output modes : forward, reverse, and braking. The motor revolving speed can be set arbitrarily by controlling the voltage applied to the motor with the control pin voltage VR.
1) Power transistors can handle a large current (1.6A maximally).
2) Brake is applied when stopping the motor.
3) Built-in function to absorb rush currents generated by reversing and braking.
4) Motor speed controlling pin.
5) Small standby current.
(VCC= 12V, IO= 5.5mA typically)
6) Stable operation during mode changes either from forward to reverse or vice versa.
7) Interface with CMOS devices.
Applications
VCRs and cassette tape recorders
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Product Category | Motor Drivers and Controllers |
| Series | - |
| Packaging | Tube |
| Package-Case | 10-SIP, Exposed Tab |
| Technology | CMOS |
| Operating-Temperature | -20°C ~ 75°C (TA) |
| Mounting-Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Applications | Media Player |
| Interface | Parallel |
| Voltage-Supply | 6 V ~ 18 V |
| Supplier-Device-Package | 10-HSIP |
| Current-Output | 1.6A |
| Output-Configuration | Half Bridge (2) |
| Voltage-Load | 6.6 V ~ 7.2 V |
| Motor-Type-Stepper | - |
| Motor-Type-AC-DC | Brushed DC |
| Resolution | - |
Form,Package,Functional compatible component
Descriptions
Motor Driver CMOS Parallel 10-HSIP
