| Place of Origin | Call |
| Brand Name | Renesas |
| Certification | ROHS |

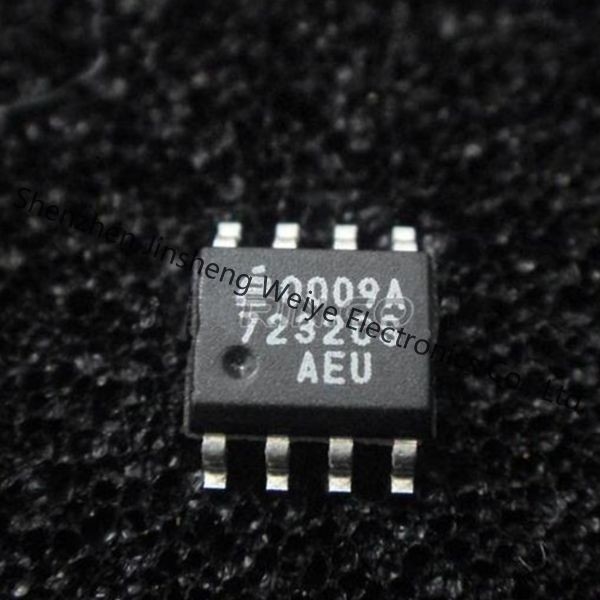

| Model Number | EL7232CS |
EL7232CS DatasheetThe EL7232C 3-state drivers are particularly well suited for ATE and microprocessor based applications. The low quiescent power dissipation makes this part attractive in battery applications. The 2A peak drive capability, makes the EL7232C an excellent choice when driving high speed capacitive lines, as well. The input circuitry provides level shifting from TTL levels to the supply rails. The EL7232C is available in 8-pin P-DIP and 8-lead SO packages.
• 3-State output
• 3V and 5V input compatible
• Clocking speeds up to 10 MHz
• 20 ns Switching/delay time
• 2A Peak drive
• Low, matched output impedance—5Ω
• Low quiescent current—2.5 mA
• Wide operating voltage—4.5V--16V
• Parallel bus line drivers
• EPROM and PROM programming
• Motor controls
• Charge pumps
• Sampling circuits
• Pin drivers
• Bridge circuits
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Interface - Drivers, Receivers, Transceivers |
| Series | - |
| Type | Driver |
| Packaging | Tube |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 4.5 V ~ 16 V |
| Supplier-Device-Package | 8-SOIC |
| Protocol | - |
| Data-Rate | - |
| Number-of-Drivers-Receivers | 2/0 |
| Duplex | - |
| Receiver-Hysteresis | - |
Form,Package,Functional compatible component
