| Place of Origin | Call |
| Brand Name | Freescale / NXP |
| Certification | ROHS |

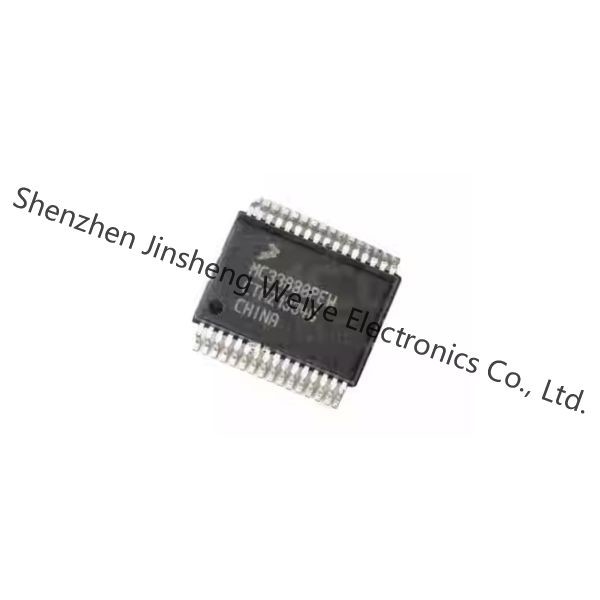

| Model Number | MC33880PEW |
MC33880PEW DatasheetSpecifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / NXP |
| Product Category | Power Distribution Switches, Load Drivers |
| Series | MC33880 |
| Product | Relay Drivers |
| Type | High and Low Side Driver |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.017990 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 32-SOIC (0.295", 7.50mm Width) |
| Input-Type | - |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Output-Type | N-Channel |
| Features | - |
| Interface | SPI |
| Supplier-Device-Package | 32-SOIC |
| Ratio of output to input | 1899/12/30 1:08:00 |
| Number-of-Outputs | 8 Outputs |
| Voltage-Supply-Vcc-Vdd | 4.75 V ~ 5.25 V |
| Fault-Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
| Output-Configuration | High Side or Low Side |
| Rds-On-Typ | 550 mOhm |
| Voltage-Load | 5.5 V ~ 24.5 V |
| Current-Output-Max | 800mA |
| Switch-Type | General Purpose |
| Pd-Power-Dissipation | 1.7 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 8 mA |
| Output-Current | 0.8 A to 2 A |
| Fall-Time | 5 ns |
| Rise-Time | 5 ns |
| Supply-Voltage-Max | 24.5 V |
| Supply-Voltage-Min | 5.5 V |
| Package-Case | SOIC-32 Wide |
| Number-of-Drivers | 8 Driver |
| Off-Time-Max | 30 us |
| Mfr | Freescale Semiconductor |
| Series | - |
| Package | Bulk |
| Product-Status | Active |
| Number-of-Outputs | 8 |
| Ratio-Input | Output |
| Voltage-Load | 5．5V ~ 24．5V |
| Voltage-Supply-Vcc-Vdd | 4．75V ~ 5．25V |
| Rds-On-Typ | 550mOhm |
| Fault-Protection | Current Limiting (Fixed) Open Load Detect Over Voltage |
| Mounting-Type | Surface Mount |
| Package-Case | 32-BSSOP (0．295" 7．50mm Width) |
| Mfr | NXP USA Inc． |
| Package | Tube |
| Product-Status | Obsolete |
| Base-Product-Number | MC338 |
Form,Package,Functional compatible component
