Semiconductor ICs
>
|
| Place of Origin | Call |
| Brand Name | Semtech |
| Certification | ROHS |

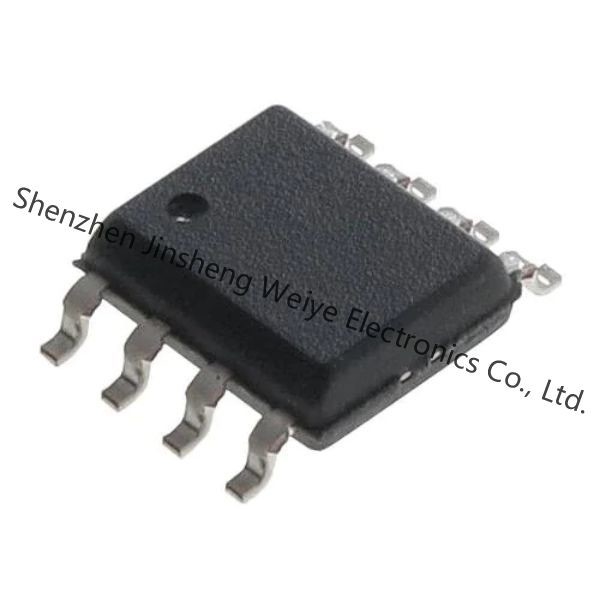

| Model Number | SC1104AISTRT |
SC1104AISTRT DatasheetThe SC1104A/B is a versatile voltage-mode PWM controller designed for use in single ended DC/DC power supply applications. A simple, fixed frequency high efficiency buck regulator can be implemented using the SC1104A/B with a minimum of external components. Internal level shift and drive circuitry eliminates the need for an expensive P-channel, high-side switch. The small device footprint allows for compact circuit design.
◆ Up to +14V input, 300kHz operation (SC1104A)
◆ Up to +7V input, 600kHz operation (SC1104B)
◆ High efficiency (>90%)
◆ 1% Reference voltage accuracy
◆ Hiccup mode over current protection
◆ Robust output drive
◆ RDS(ON) Current sensing
◆ Industrial temperature range
◆ 8-Lead SOIC package. Pb-free package available, fully WEEE and RoHS compliant
◆ Termination supplies
◆ Low cost microprocessor supplies
◆ Peripheral card supplies
◆ Industrial power supplies
◆ High density DC/DC conversion
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Semtech |
| Product Category | DC DC Switching Controllers |
| Series | - |
| Product | Voltage Mode PWM Controllers |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Output-Type | Transistor Driver |
| Function | Step-Down |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Voltage-Supply-Vcc-Vdd | 4.5 V ~ 14 V |
| Frequency-Switching | 300kHz |
| Control-Features | Enable, Phase Control, Soft Start |
| Output-Configuration | Positive |
| Output-Phases | 1 |
| Duty-Cycle-Max | 0.95 |
| Synchronous-Rectifier | Yes |
| Clock-Sync | No |
| Serial-Interfaces | - |
| Shutdown | Yes |
| Isolation | Non-Isolated |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 14 V |
| Output-Voltage | 1 V |
| Description-Function | Synchronous voltage mode PWM controller |
| Operating-Supply-Current | 11 mA |
| Input-Voltage | 14 V |
| Output-Current | 20 A |
| Switching-Frequency | 300 kHz |
| Fall-Time | 50 ns |
| Rise-Time | 50 ns |
| Software Development Kit | SC1104XEVB |
| Package-Case | SOIC-8 |
| Duty-Cycle-Max | 95 % |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| NCP1582ADR2G Power Circuits |
SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PDSO8, LEAD FREE, SOIC-8 | Rochester Electronics LLC | SC1104AISTRT vs NCP1582ADR2G |
| CS5211GD14 Power Circuits |
IC 1.5 A SWITCHING CONTROLLER, 900 kHz SWITCHING FREQ-MAX, PDSO14, SOIC-14, Switching Regulator or Controller | ON Semiconductor | SC1104AISTRT vs CS5211GD14 |
| NCP1582DR2G Power Circuits |
SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO8, LEAD FREE, SOIC-8 | Rochester Electronics LLC | SC1104AISTRT vs NCP1582DR2G |
| NCP1586DR2G Power Circuits |
Low Voltage Synchronous Buck Controller, SOIC-8 Narrow Body, 2500-REEL | ON Semiconductor | SC1104AISTRT vs NCP1586DR2G |
| SC1104AISTR Power Circuits |
Switching Controller, Voltage-mode, 0.7A, 300kHz Switching Freq-Max, PDSO8, MS-012AA, SOIC-8 | Semtech Corporation | SC1104AISTRT vs SC1104AISTR |
| NCP1583DR2G Power Circuits |
SWITCHING CONTROLLER, 325 kHz SWITCHING FREQ-MAX, PDSO8, LEAD FREE, SOIC-8 | Rochester Electronics LLC | SC1104AISTRT vs NCP1583DR2G |
| CS5211GDR14 Power Circuits |
1.5A SWITCHING CONTROLLER, 900kHz SWITCHING FREQ-MAX, PDSO14, SOIC-14 | Rochester Electronics LLC | SC1104AISTRT vs CS5211GDR14 |
| NCP1587DR2G Power Circuits |
Synchronous Buck Controller, Low Voltage, SOIC-8 Narrow Body, 2500-REEL | ON Semiconductor | SC1104AISTRT vs NCP1587DR2G |
| CS5211GDR14G Power Circuits |
1.5A SWITCHING CONTROLLER, 900kHz SWITCHING FREQ-MAX, PDSO14, LEAD FREE, SOIC-14 | ON Semiconductor | SC1104AISTRT vs CS5211GDR14G |
| CS5211GD14G Power Circuits |
1.5A SWITCHING CONTROLLER, 900kHz SWITCHING FREQ-MAX, PDSO14, LEAD FREE, SOIC-14 | ON Semiconductor | SC1104AISTRT vs CS5211GD14G |
