| Place of Origin | Call |
| Brand Name | Microchip Technology |
| Certification | ROHS |

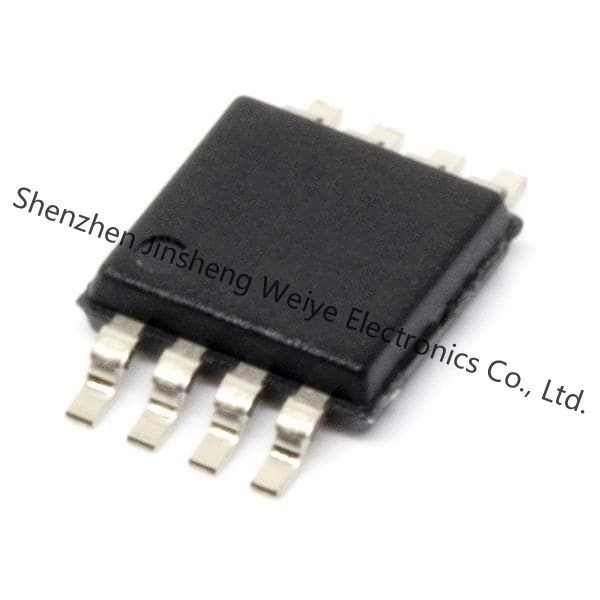

| Model Number | MIC4224YMME |
MIC4224YMME DatasheetThe MIC4426/4427/4428 family are highly-reliable dual low-side MOSFET drivers fabricated on a BiCMOS/DMOS process for low power consumption and high efficiency. These drivers translate TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground. Comparable bipolar devices are capable of swinging only to within 1V of the supply. The MIC4426/7/8 is available in three configurations: dual inverting, dual noninverting, and one inverting plus one noninverting output.
• Bipolar/CMOS/DMOS construction
• Latch-up protection to >500mA reverse current
• 1.5A-peak output current
• 4.5V to 18V operating range
• Low quiescent supply current 4mA at logic 1 input 400µA at logic 0 input
• Switches 1000pF in 25ns
• Matched rise and rall times
• 7Ω output impedance
• < 40ns typical delay
• Logic-input threshold independent of supply voltage
• Logic-input protection to –5V
• 6pF typical equivalent input capacitance
• 25mV max. output offset from supply or ground
• Replaces MIC426/427/428 and MIC1426/1427/1428
• Dual inverting, dual noninverting, and inverting/ noninverting configurations
• ESD protection
• MOSFET driver
• Clock line driver
• Coax cable driver
• Piezoelectic transducer driver
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Gate Drivers |
| Series | MIC4224 |
| Product | MOSFET Gate Drivers |
| Type | Low-Side |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.004938 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | Surface Mount |
| Operating-Temperature | 15ns, 15ns |
| Mounting-Type | -40°C ~ 125°C (TJ) |
| Supplier-Device-Package | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Resolution-Bits | 2 |
| Data-Interface | Independent |
| Voltage-Supply-Analog | Non-Inverting |
| Voltage-Supply-Digital | - |
| Configuration | Non-Inverting |
| Number-of-ADCs-DACs | |
| Sigma-Delta | 4.5 V ~ 18 V |
| S-N-Ratio-ADCs-DACs-db-Typ | 0.8V, 2.4V |
| Dynamic-Range-ADCs-DACs-db-Typ | 4A, 4A |
| Number-of-Outputs | 2 Outputs |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 1.7 mA |
| Output-Current | 4 A |
| Fall-Time | 15 ns |
| Rise-Time | 15 ns |
| Supply-Voltage-Max | 18 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | MSOP-8 |
| Number-of-Drivers | 2 Driver |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MIC4224YMMETR Drivers And Interfaces |
4A BUF OR INV BASED MOSFET DRIVER, PDSO8, LEAD FREE, MSOP-8 | Microchip Technology Inc | MIC4224YMME vs MIC4224YMMETR |
| MIC4224YMME Drivers And Interfaces |
4A BUF OR INV BASED MOSFET DRIVER, PDSO8 | Microchip Technology Inc | MIC4224YMME vs MIC4224YMME |
