| Place of Origin | Call |
| Brand Name | Microchip Technology |
| Certification | ROHS |

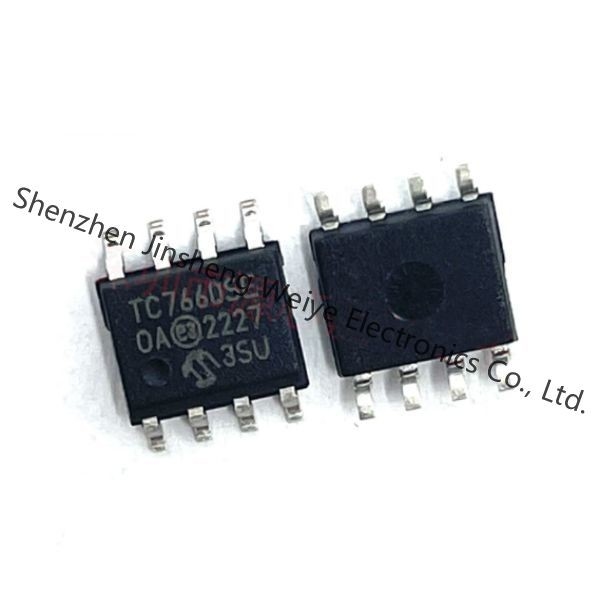

| Model Number | TC7660SEOA |
TC7660SEOA DatasheetThe TC7660S is a pin-compatible upgrade to the Industry standard TC7660 charge pump voltage converter. It converts a +1.5V to +12V input to a corresponding -1.5V to -12V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI. Added features include an extended supply range to 12V, and a frequency boost pin for higher operating frequency, allowing the use of smaller external capacitors.
■ Oscillator boost from 10kHz to 45kHz
■ Converts +5V Logic Supply to ±5V System
■ Wide Input Voltage Range .................... 1.5V to 12V
■ Efficient Voltage Conversion ......................... 99.9%
■ Excellent Power Efficiency ............................... 98%
■ Low Power Supply ..............................80µA @ 5 VIN
■ Low Cost and Easy to Use
— Only Two External Capacitors Required
■ Available in Small Outline (SOIC) Package
■ Improved ESD Protection ..................... Up to 10kV
■ No External Diode Required for High Voltage Operation
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | IC Chips |
| Series | - |
| Type | Charge Pump |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.006596 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Ratiometric |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Charge Pump |
| Frequency-Switching | 10kHz ~ 45kHz |
| Current-Output | 20mA |
| Output-Configuration | Positive or Negative |
| Output Voltage | -Vin, 2Vin |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 1.5V |
| Voltage-Input-Max | 12V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | - 1.5 V to - 12 V 3 V to 24 V |
| Input-Voltage-MAX | 12 V |
| Output-Current | 20 mA |
| Switching-Frequency | 10 kHz |
| Package-Case | SOIC-Narrow-8 |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| LM2660M Power Circuits |
SWITCHED CAPACITOR CONVERTER, 40kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | Rochester Electronics LLC | TC7660SEOA vs LM2660M |
| TC7660SCOA Power Circuits |
SWITCHED CAPACITOR REGULATOR, 45 kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, SOIC-8 | Microchip Technology Inc | TC7660SEOA vs TC7660SCOA |
| LM2660M/NOPB Power Circuits |
100mA switched capacitor voltage converter 8-SOIC -40 to 85 | Texas Instruments | TC7660SEOA vs LM2660M/NOPB |
| LTC660CS8#PBF Power Circuits |
100mA CMOS Voltage Converter | Analog Devices Inc | TC7660SEOA vs LTC660CS8#PBF |
| LTC660CS8 Power Circuits |
Switched Capacitor Converter, 45kHz Switching Freq-Max, CMOS, PDSO8 | Analog Devices Inc | TC7660SEOA vs LTC660CS8 |
| LM2660MX Power Circuits |
Switched Capacitor Voltage Converter 8-SOIC -40 to 85 | Texas Instruments | TC7660SEOA vs LM2660MX |
| LTC660CS8#TRPBF Power Circuits |
100mA CMOS Voltage Converter | Analog Devices Inc | TC7660SEOA vs LTC660CS8#TRPBF |
| LM2660MX/NOPB Power Circuits |
100mA switched capacitor voltage converter 8-SOIC -40 to 85 | Texas Instruments | TC7660SEOA vs LM2660MX/NOPB |
