| Model Number | NTV1205 |

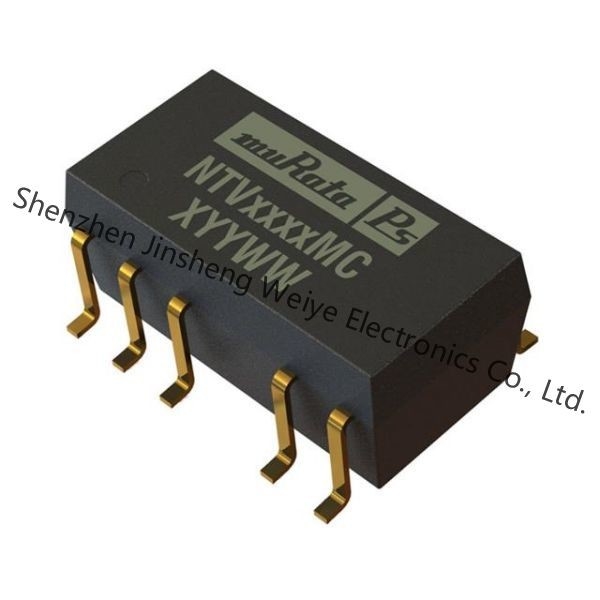

NTV1205MC DatasheetThe NTV series of 3kV isolation miniature surface mounted DC/DC converters employ leadframe technology and transfer moulding techniques to bring all of the benefits of IC style packaging to hybrid circuitry. The co-planarity of the pin positions is based upon IEC 191-6:1990. The devices are suitable for all applications where high volume production is envisaged.
■ RoHS compliant
■ Efficiency up to 82%
■ Wide temperature performance at full 1 Watt load, –40°C to 85°C
■ UL 94V-0 package material
■ Footprint over pins 1.64cm2
■ Lead frame technology
■ Dual isolated output
■ 5V & 12V input
■ 5V, 9V, 12V and 15V output
■ Internal SMD construction
■ Toroidal magnetics
■ Plastic encapsulated
■ 3kVDC isolation (1 minute)
■ MTTF up to 1.7 million hours
■ Power density 1.36W/cm3
■ No heatsink required
■ Custom solutions available
■ Multi layer ceramic capacitors
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Murata Power Solutions |
| Product Category | DC DC Converters |
| Series | NTV |
| Product | Isolated |
| Type | Isolated Module |
| Packaging | Tube Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 22-SMD Module (10 Leads) |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Features | SCP |
| Size-Dimension | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) |
| Applications | ITE (Commercial) |
| Number-of-Outputs | 2 Outputs |
| Current-Output-Max | 100mA, 100mA |
| Voltage-Input-Min | 10.8V |
| Voltage-Input-Max | 13.2V |
| Voltage-Isolation | 3kV (3000V) |
| Output-Power | 0.5 W |
| Voltage-Output-1 | 5V |
| Voltage-Output-2 | -5V |
| Voltage-Output-3 | - |
| Efficiency | 0.73 |
| Power-Watts-Manufacture-Series | 1W |
| Input-Voltage | 10.8 V to 13.2 V |
| Output-Voltage-Channel-1 | +/- 5 V |
| Output-Current-Channel-1 | 100 mA |
| Isolation-Voltage | 3 kV |
| Output-Voltage-Channel-2 | 5 V |
