| Place of Origin | Call |
| Brand Name | Maxim Integrated |
| Certification | ROHS |

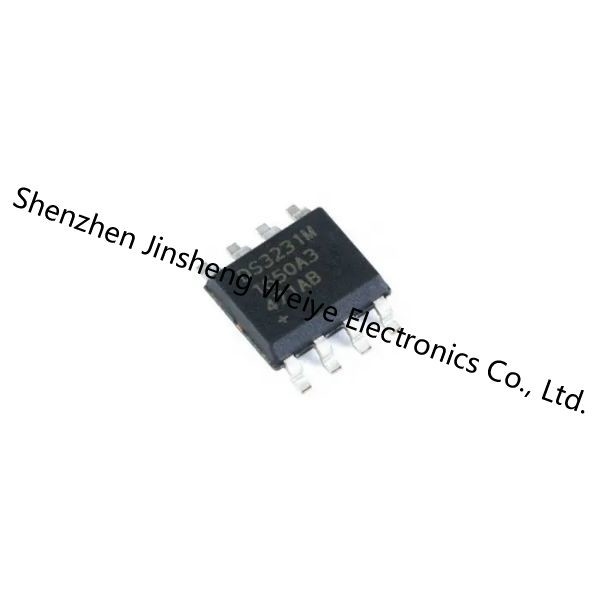

| Model Number | DS3231MZ+ |
Product Details
The DS3231M is a low-cost, extremely accurate, I2C realtime clock (RTC). The device incorporates a battery input
and maintains accurate timekeeping when main power to the device is interrupted. The integration of the microelectromechanical systems (MEMS) resonator enhances the long-term accuracy of the device and reduces the piecepart count in a manufacturing line. The DS3231M is available in the same footprint as the popular DS3231 RTC.
Features
• Highly Accurate RTC With Integrated MEMS Resonator Completely Manages All Timekeeping Functions
• Complete Clock Calendar Functionality Including Seconds, Minutes, Hours, Day, Date, Month, and Year, with Leap-Year Compensation Up to Year 2100
• Timekeeping Accuracy ±5ppm (±0.432 Second/Day) from -45°C to +85°C
• Footprint and Functionally Compatible to DS3231
• Two Time-of-Day Alarms
• 1Hz and 32.768kHz Outputs
• Reset Output and Pushbutton Input with Debounce
• Digital Temp Sensor with ±3°C Accuracy
• +2.3V to +5.5V Supply Voltage
● Simple Serial Interface Connects to Most Microcontrollers
• Fast (400kHz) I2C Interface
● Battery-Backup Input for Continuous Timekeeping
• Low Power Operation Extends Battery-Backup Run Time
● Operating Temperature Range: -40°C to +85°C
● 8-Pin or 16-Pin SO Packages
● Underwriters Laboratories® (UL) Recognized
Application
Power Meters
Industrial Applications
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | IC Chips |
| Series | DS3231MZ |
| Product | Real Time Clocks |
| Type | Clock/Calendar |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Features | Alarm, Leap Year, Square Wave Output |
| Function | Clock Calendar Alarm |
| Interface | I2C, 2-Wire Serial |
| Voltage-Supply | 2.3 V ~ 5.5 V |
| Supplier-Device-Package | 8-SOIC |
| Memory Capacity | - |
| Time-Format | HH:MM:SS (12/24 hr) |
| Date-Format | YY-MM-DD-dd |
| Voltage-Supply-Battery | 2.3 V ~ 5.5 V |
| Current-Timekeeping-Max | 130μA ~ 200μA @ 3.63V ~ 5.5V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Battery-Backup-Switching | Backup Switching |
| Part-#-Aliases | 90-3231M+ZN0 |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2.3 V |
| Package-Case | SOIC-8 |
| RTC-Bus-Interface | I2C |
| Manufacturer Part# | Description | Manufacturer | Compare |
| DS3231MZ+ | Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDSO8, ROHS COMPLIANT, SOP-8 | Maxim Integrated Products | DS3231MZ+TRL vs DS3231MZ+ |
| Microcontrollers and Processors | |||
| DS3231M+ | Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDSO16, ROHS COMPLIANT, SOP-16 | Maxim Integrated Products | DS3231MZ+TRL vs DS3231M+ |
| Microcontrollers and Processors | |||
| DS3231MZ/V+T | Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDSO8, ROHS COMPLIANT, SOIC-8 | Maxim Integrated Products | DS3231MZ+TRL vs DS3231MZ/V+T |
| Microcontrollers and Processors | |||
| DS3231MZ/V+ | Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDSO8, ROHS COMPLIANT, SOP-8 | Maxim Integrated Products | DS3231MZ+TRL vs DS3231MZ/V+ |
| Microcontrollers and Processors |
