| Place of Origin | Call |
| Brand Name | STMicroelectronics |
| Certification | ROHS |
| Model Number | M95160-DRMN3TP/K |
Product Details

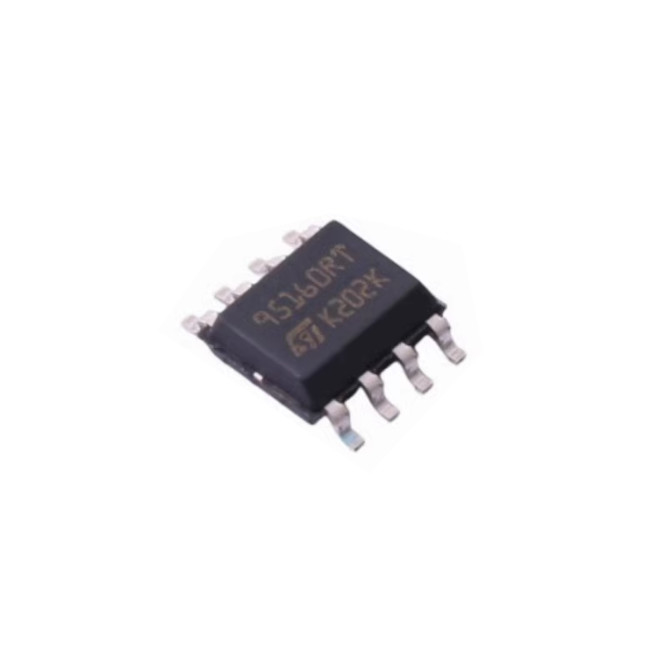

The M95160 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 2048 x 8 bits, accessed through the SPI bus.
The M95160-W can operate with a supply voltage from 2.5 V to 5.5 V, the M95160-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M95160-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 °C / +85 °C.
The M95160-D offers an additional page, named the Identification Page (32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
• Compatible with the Serial Peripheral Interface (SPI) bus
• Memory array
– 16 Kb (2 Kbytes) of EEPROM
– Page size: 32 bytes
– Additional Write lockable Page (Identification page)
• Write
– Byte Write within 5 ms
– Page Write within 5 ms
• Write Protect: quarter, half or whole memory array
• High-speed clock: 20 MHz
• Single supply voltage:
– 2.5 V to 5.5 V for M95160-W
– 1.8 V to 5.5 V for M95160-R
– 1.7 V to 5.5 V for M95160-DF
• Operating temperature range: from -40°C up to +85°C
• Enhanced ESD protection
• More than 4 million Write cycles
• More than 200-year data retention
• Packages
– RoHS compliant and halogen-free (ECOPACK®)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Memory ICs |
| Series | M95160-D |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.017870 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Interface | SPI Serial |
| Voltage-Supply | 1.8 V ~ 5.5 V |
| Supplier-Device-Package | 8-SO |
| Memory Capacity | 16K (2K x 8) |
| Memory-Type | EEPROM |
| Speed | 20MHz |
| Format-Memory | EEPROMs - Serial |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 5.5 V |
| Interface-Type | Serial 4-Wire SDI SPI |
| Organization | 2 k x 8 |
| Supply-Current-Max | 4 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.8 V |
| Package-Case | SO-8 |
| Maximum-Clock-Frequency | 10 MHz |
| Data-Retention | 100 Years |
