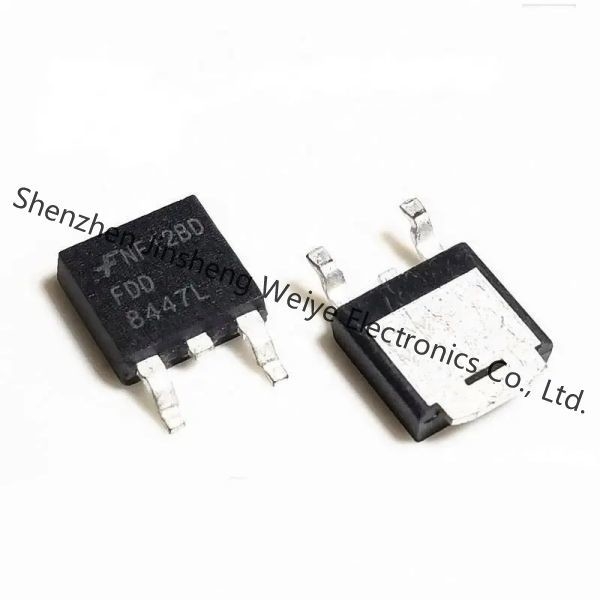

FDD8447L_F085 Datasheet
Product Details
■ Typ rDS(on) = 7.0mΩ at VGS = 10V, ID = 14A
■ Typ rDS(on) = 8.5mΩ at VGS = 4.5V, ID = 11A
■ Fast Switching
■ Qualified to AEC Q101
■ RoHS Compliant
■ Inverter
■ Power Supplies
■ Automotive Engine Control
■ Power Train Management
■ Solenoid and Motor Drivers
■ Electronic Transmission
■ Primary Switch for 12V and 24V Systems
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | FETs - Single |
| Series | Automotive, AEC-Q101, PowerTrench® |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.009184 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Technology | Si |
| Operating-Temperature | -55°C ~ 175°C (TJ) |
| Mounting-Type | Surface Mount |
| Number-of-Channels | 1 Channel |
| Supplier-Device-Package | D-Pak |
| Configuration | Single |
| FET-Type | MOSFET N-Channel, Metal Oxide |
| Power-Max | 65W |
| Transistor-Type | 1 N-Channel |
| VDSS – Drain-Source Voltage | 40V |
| Input Capacitance | 1970pF @ 20V |
| FET-Feature | Standard |
| Current-Continuous-Drain-Id-25°C | 50A (Tc) |
| Rds-On-Max-Id-Vgs | 8.5 mOhm @ 14A, 10V |
| Vgs-th-Max-Id | 3V @ 250μA |
| Gate-Charge-Qg-Vgs | 52nC @ 10V |
| Pd-Power-Dissipation | 3.8 W |
| Maximum Operating Temperature | + 175 C |
| Operating temperature range | - 55 C |
| Fall-Time | 9 ns |
| Rise-Time | 12 ns |
| Vgs-Gate-Source-Voltage | 20 V |
| ID (drain current) | 21 A |
| Vds-Drain-Source-Breakdown-Voltage | 40 V |
| Rds-On-Drain-Source-Resistance | 11 mOhms |
| Transistor-Polarity | N-Channel |
| Typical-Turn-Off-Delay-Time | 38 ns |
| Turn-On Delay Time | 12 ns |
| Channel-Mode | Enhancement |
