| Place of Origin | Call |
| Brand Name | NXP Semiconductors |
| Certification | ROHS |
| Model Number | FXLS8962AFR1 |
FXLS8962AFR1 Datasheet
Product Details
The MM74HC4051, MM74HC4052 and MM74HC4053 multiplexers are digitally controlled analog switches implemented in advanced silicon-gate CMOS technology.
■ Wide analog input voltage range: ±6V
■ Low “on” resistance:
50 typ. (VCC–VEE = 4.5V)
30 typ. (VCC–VEE = 9V)
■ Logic level translation to enable 5V logic with ±5V ana log signals
■ Low quiescent current: 80 µA maximum (74HC)
■ Matched Switch characteristic
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
| Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Manufacturer | ON Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part-Status | Obsolete |
| Switch-Circuit | SPDT |
| Multiplexer-Demultiplexer-Circuit | 2 |
| Number-of-Circuits | 3 Circuits |
| On-State-Resistance-Max | 100 Ohm |
| Channel-to-Channel-Matching-ΔRon | 15 Ohm |
| Voltage-Supply-Single-V+ | 2 V ~ 6 V |
| Voltage-Supply-Dual-V± | ±2 V ~ 6 V |
| Switch-Time-Ton-Toff-Max | 41ns, 32ns |
| -3db-Bandwidth | 35MHz |
| Charge-Injection | - |
| Channel-Capacitance-CS-off-CD-off | 5pF, 30pF |
| Current-Leakage-IS-off-Max | 100nA |
| Crosstalk | -50dB @ 1MHz |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Package-Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier-Device-Package | 16-SOIC |
| Base-Part-Number | 74HC4053 |
Descriptions

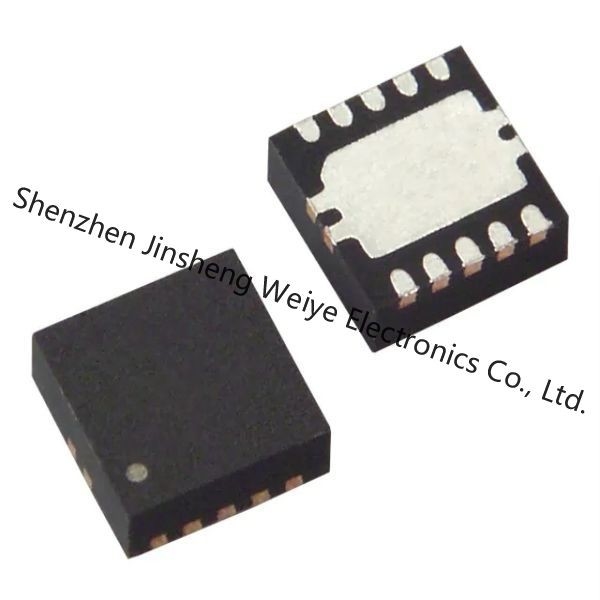

Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 10-DFN (2x2
