| Place of Origin | Call |
| Brand Name | Monolithic Power Systems |
| Certification | ROHS |
| Model Number | MP62061DH-LF-Z |
Product Details
The MP6205 Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP6205 Analog switch features 90mΩ on-resistance and operates from 2.7V to 5.5V input. It is available with a guaranteed current limit, making it ideal for load switching applications. The MP6205 has built-in protection for both over current and increased thermal stress. For over current, the device will limit the current by changing to a constant current mode.
As the temperature increases as a result of short circuit, the device will shut off. The device will recover once the device temperature reduces to approx 120°C.
The MP6205 is available in QFN8, MSOP8E, SOIC8E packages.
• 500mA Continuous Current
• Accurate Current Limit
• 2.7V to 5.5V Supply Range
• 140uA Quiescent Current
• 90mΩ MOSFET
• Thermal-Shutdown Protection
• Under-Voltage Lockout
• 8ms FLAG Deglitch Time
• No FLAG Glitch During Power Up
• Reverse Current Blocking
• QFN8, MSOP8E, SOIC8E Packages
• UL Recognized: E322138
• Smartphone and PDA
• Portable GPS Device
• Set-top-box
• USB Power Distribution
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Monolithic Power Systems |
| Product Category | Power Distribution Switches, Load Drivers |
| Series | MP62061 |
| Packaging | Tape & Reel (TR) Alternate Packaging |

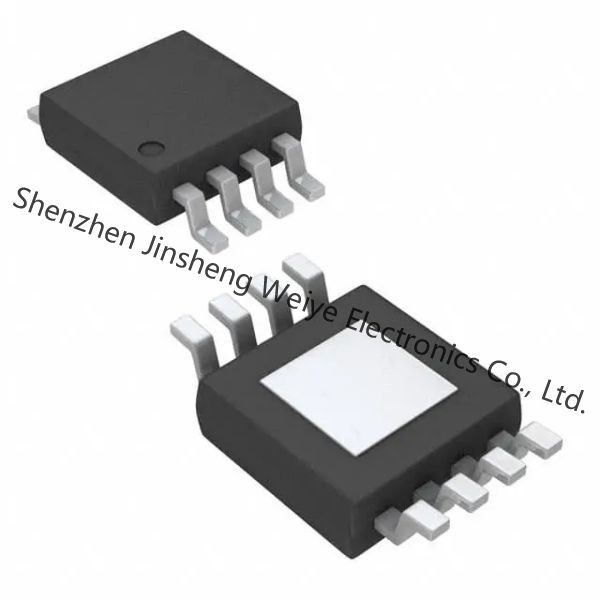

| Package-Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Input-Type | - |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Output-Type | - |
| Features | Status Flag |
| Interface | On/Off |
| Supplier-Device-Package | 8-MSOP-EP |
| Ratio of output to input | 1899/12/30 1:01:00 |
| Number-of-Outputs | 1 Output |
| Voltage-Supply-Vcc-Vdd | Not Required |
| Fault-Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Output-Configuration | High Side |
| Rds-On-Typ | 80 mOhm |
| Voltage-Load | 2.7 V ~ 5.5 V |
| Current-Output-Max | 700mA |
| Switch-Type | USB Switch |
