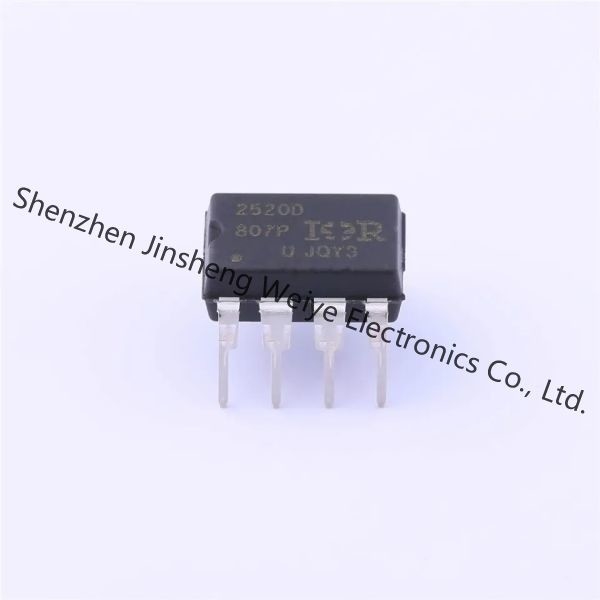

| Model Number | IR2520DPBF |
Product Details
The IR2520D(S) is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications. The IC includes adaptive zero-voltage switching (ZVS), internal crest factor over-current protection, as well as an integrated bootstrap FET. The heart of this IC is a voltage controlled oscillator with externally programmable minimum frequency. All of the necessary ballast features are integrated in a small 8-pin DIP or SOIC package.
• 600V Half Bridge Driver
• Integrated Bootstrap FET
• Adaptive zero-voltage switching (ZVS)
• Internal Crest Factor Over-Current Protection
• 0 to 6VDC Voltage Controlled Oscillator
• Programmable minimum frequency
• Micropower Startup Current (80uA)
• Internal 15.6V zener clamp on Vcc
• Small DIP8/SO8 Package
• Also available LEAD-FREE (PbF)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TOSHIBA |
| Product Category | IC Chips |
| Series | - |
| Product | Half-Bridge Drivers |
| Type | Ballast Controller |
| Packaging | Tube |
| Unit-Weight | 0.080001 oz |
| Mounting-Style | Through Hole |
| Package-Case | 8-DIP (0.300", 7.62mm) |
| Frequency | 34kHz ~ 86kHz |
| Operating-Temperature | -25°C ~ 125°C |
| Mounting-Type | Through Hole |
| Voltage-Supply | 11.4 V ~ 15.4 V |
| Current-Supply | 10mA |
| current sources and sinks | - |
| Dimming | No |
| Pd-Power-Dissipation | 1 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 25 C |
| Operating-Supply-Current | 10 mA |
| Output-Current | 230 mA |
| Fall-Time | 75 ns |
| Rise-Time | 150 ns |
| Supply-Voltage-Max | 15.4 V |
| Supply-Voltage-Min | 12.6 V |
| Package-Case | DIP-8 |
| Number-of-Drivers | 1 Driver |
