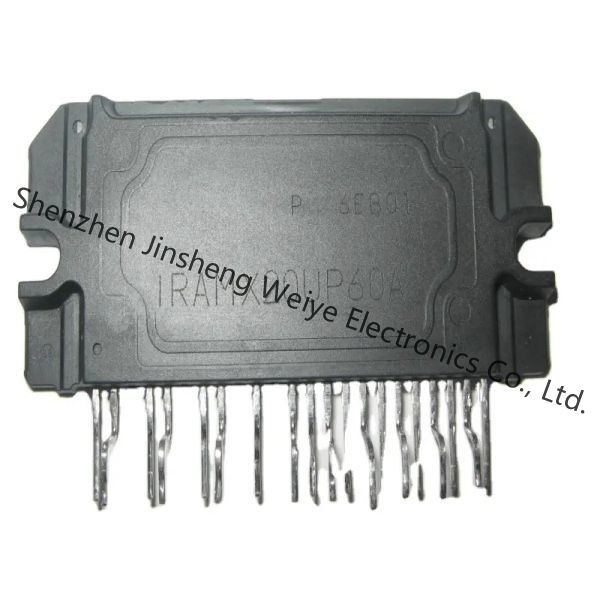

IRAMX20UP60A Power Motion Ignition Controllers Drivers 20A 600V

                                                                  IRAMX20UP60A Datasheet

Product Details

Description

International Rectifier's IRAMS10UP60A is an Integrated Power Module developed and optimized for electronic motor control in appliance applications such as washing machines and refrigerators. Plug N Drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.
A built-in temperature monitor and over-temperature/over-current protection, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation.
The integration of the bootstrap diodes for the high-side driver section, and the single polarity power supply required to drive the internal circuitry, simplify the utilization of the module and deliver further cost reduction advantages.

Features

• Integrated Gate Drivers and Bootstrap Diodes.
• Temperature Monitor
• Temperature and Overcurrent shutdown
• Fully Isolated Package.
• Low VCE (on) Non Punch Through IGBT Technology
• Under-voltage lockout for all channels
• Matched propagation delay for all channels
• Low side IGBT emitter pins for current conrol
• Schmitt-triggered input logic
• Cross-conduction prevention logic
• Lower di/dt gate driver for better noise immunity
