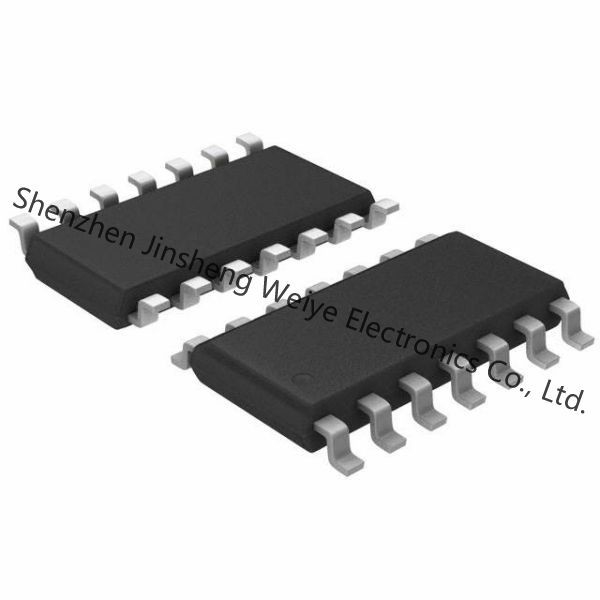

| Model Number | ISL6401CB |
Product Details
The ISL6401 adjustable frequency, low power, pulse width modulating (PWM) current mode controller is designed for a wide range of DC/DC conversion applications including boost, flyback, and isolated output configurations. The device is optimized to provide a high performance, low-cost solution for Ringing SLIC (RSLIC) ring and talk power supplies. An integrated inverter allows for easy design of negative voltage regulation circuits with a minimal amount of external components. Internal soft-start minimizes start-up stress without any external components. Peak current mode control effectively handles Ring trip transients and provides inherent overcurrent protection.
• Positive and Negative Output Regulation
• Starting Supply Current . . . . . . . . . . . . . . . . . 100µA (typ.)
• Quiescent Current . . . . . . . . . . . . . . . . . . . . . . 55µA (typ.)
• Output Frequency Range. . . . . . . . . . . . 50kHz to 600kHz
• External Clock Synchronization
• Fast Transient Response with Peak Current Mode Control
• Internal Soft-Start
• Drives N-Channel MOSFET
• Logic Level Shutdown
• Leading Edge Blanking
• 1% Tolerance Voltage Reference Over Line and Temperature
• Pb-Free Available (RoHS Compliant)
• VoIP/VoDSL Ringer and Off-Hook Voltage Generators
• Multi-Output Flyback Supplies
• Cable and DSL Modems
• Set-Top Boxes
• Wireless Local Loops
• LMDH and FTTH Supplies
• Boost Regulators
• Routers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | DC DC Switching Controllers |
| Series | - |
| Packaging | - |
| Package-Case | 14-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Output-Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Supplier-Device-Package | 14-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Boost, Flyback |
| Voltage-Supply-Vcc-Vdd | 4.5 V ~ 5.5 V |
| Frequency-Switching | 50kHz ~ 500kHz |
| Control-Features | Enable, Frequency Control |
| Output-Configuration | Positive, Isolation Capable |
| Output-Phases | 1 |
| Duty-Cycle-Max | 0.48 |
| Synchronous-Rectifier | No |
| Clock-Sync | Yes |
| Serial-Interfaces | - |
