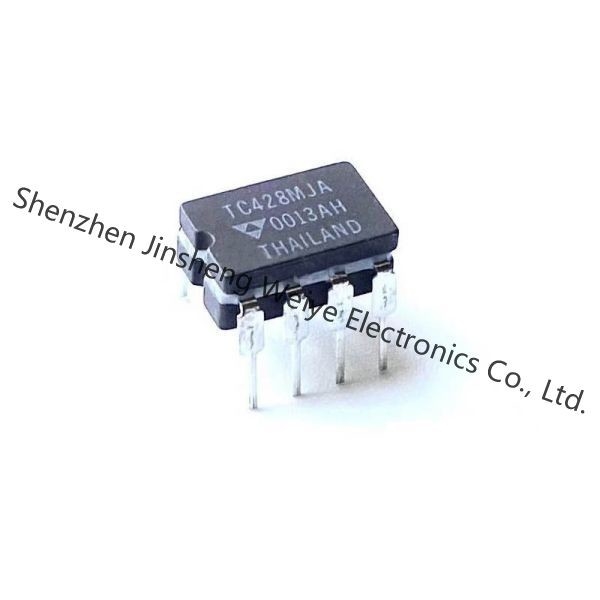

TC428MJA Power Management ICs Gate Drivers 1.5A Dual H-Speed

                                                                  TC428MJA Datasheet

Product Details

GENERAL DESCRIPTION

The TC426/TC427/TC428 are dual CMOS high-speed drivers. A TTL/CMOS input voltage level is translated into a rail-to-rail output voltage level swing. The CMOS output is within 25 mV of ground or positive supply.

FEATURES

■ High-Speed Switching (CL = 1000pF)........... 30nsec
■ High Peak Output Current................................. 1.5A
■ High Output Voltage Swing .................. VDD – 25mV GND + 25mV
■ Low Input Current (Logic "0" or "1") ................ 1µA
■ TTL/CMOS Input Compatible
■ Available in Inverting and Noninverting Configurations
■ Wide Operating Supply Voltage ............ 4.5V to 18V
■ Current Consumption
— Inputs Low .................................................. 0.4mA
— Inputs High .................................................... 8mA
■ Single Supply Operation
■ Low Output Impedance ........................................ 6Ω
■ Pinout Equivalent of DS0026 and MMH0026
■ Latch-Up Resistant: Withstands > 500mA Reverse Current
■ ESD Protected ......................................................2kV
