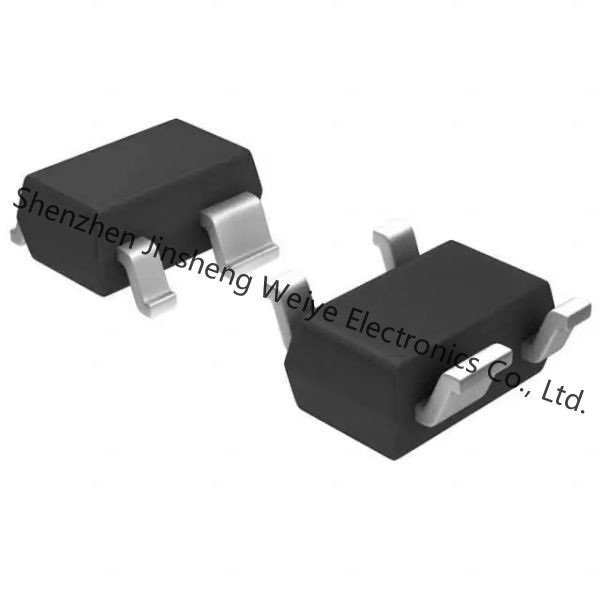

NCP305LSQ28T1G Power Supervisory Circuits 2.8V Detector w/Reset Low

                                                                  NCP305LSQ28T1G Datasheet

Product Details

Voltage Detector Series

The NCP304 and NCP305 series are second generation ultra−low current voltage detectors. These devices are specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount.

Each series features a highly accurate undervoltage detector with hysteresis which prevents erratic system reset operation as the comparator threshold is crossed.
The NCP304 series consists of complementary output devices that are available with either an active high or active low reset output. The NCP305 series has an open drain N−Channel output with an active low reset output.
The NCP304 and NCP305 device series are available in the SC−82AB package with standard undervoltage thresholds. Additional thresholds that range from 0.9 V to 4.9 V in 100 mV steps can be manufactured.

Features

• Quiescent Current of 1.0 μA Typical
• High Accuracy Undervoltage Threshold of 2.0%
• Wide Operating Voltage Range of 0.8 V to 10 V
• Complementary or Open Drain Reset Output
• Active Low or Active High Reset Output
• Pb−Free Packages are Available*

Typical Applications

• Microprocessor Reset Controller
• Low Battery Detection
• Power Fail Indicator
• Battery Backup Detection
