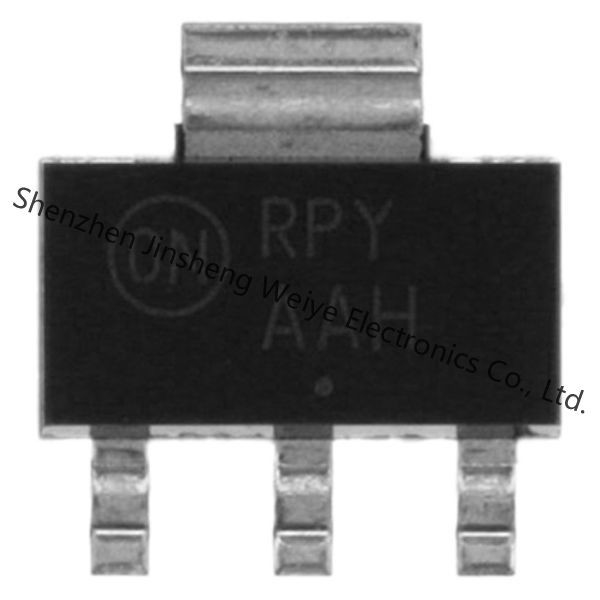

NSI45030AZT1G Power Management ICs LED Lighting Drivers SOT223 30mA 10% CCR
  • NSI45030AZT1G Power Management ICs LED Lighting Drivers SOT223 30mA 10% CCR
  • NSI45030AZT1G Power Management ICs LED Lighting Drivers SOT223 30mA 10% CCR

NSI45030AZT1G Power Management ICs LED Lighting Drivers SOT223 30mA 10% CCR

Place of Origin Call
Brand Name ON Semiconductor
Certification ROHS
Model Number NSI45030AZT1G
Product Details
Product Name:
NSI45030AZT1G
Condition:
Original 100%
Installation Methodpe:
±10% 30mA Current Regulator -40°C ~ 125°C NSI45030AZ SOT-223
Package:
SOT223
Voltage - Supply:
International Standard
Max. Reverse Current:
International Standard
Application:
Current Regulation/Management
Product Description

                                                                  NSI45030AZT1G Power Management ICs LED Lighting Drivers SOT223 30mA 10% CCR 0NSI45030AZT1G Datasheet

Product Details

The adjustable constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents.

Features

• Robust Power Package: 1.5 Watts
• Adjustable up to 40 mA
• Wide Operating Voltage Range
• Immediate Turn-On
• Voltage Surge Suppressing − Protecting LEDs
• AEC−Q101 Qualified and PPAP Capable, UL94−V0 Certified
• SBT (Self−Biased Transistor) Technology
• Negative Temperature Coefficient
• Eliminates Additional Regulation
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant



Applications

• Automobile: Chevron Side Mirror Markers, Cluster, Display & Instrument Backlighting, CHMSL, Map Light
• AC Lighting Panels, Display Signage, Decorative Lighting, Channel Lettering
• Switch Contact Wetting
• Application Note AND8349/D − Automotive CHMSL
• Application Note AND8391/D − Power Dissipation Considerations

Specifications

Attribute Attribute Value
Manufacturer ON Semiconductor
Product Category Current Regulation/Management
Series NSI45030AZ
Packaging  Alternate Packaging
Unit-Weight 0.006632 oz
Mounting-Style SMD/SMT
Package-Case TO-261-4, TO-261AA
Operating-Temperature  -40°C ~ 125°C
Mounting-Type Surface Mount
Function Current Regulator
Supplier-Device-Package SOT-223
Voltage-Input 45V
Sensing-Method  High/Low-Side
Accuracy ±10%
Current-Output 30mA
Pd-Power-Dissipation  1.4 W
Maximum Operating Temperature  + 150 C
Operating temperature range  - 55 C
Input-Voltage  45 V
Supply-Current-Max 33 mA
Package-Case SOT-223

Descriptions

Current Regulator Regulator High/Low-Side 30mA SOT-223
LED Lighting Drivers SOT223 30mA 10% CCR
